Kia Optima Hybrid: Interior / Trunk Trim Repair procedures

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body (Interior and Exterior) / Interior / Trunk Trim Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the trunk trim.

Installation is the reverse of removal.

•	Replace any damaged clips.

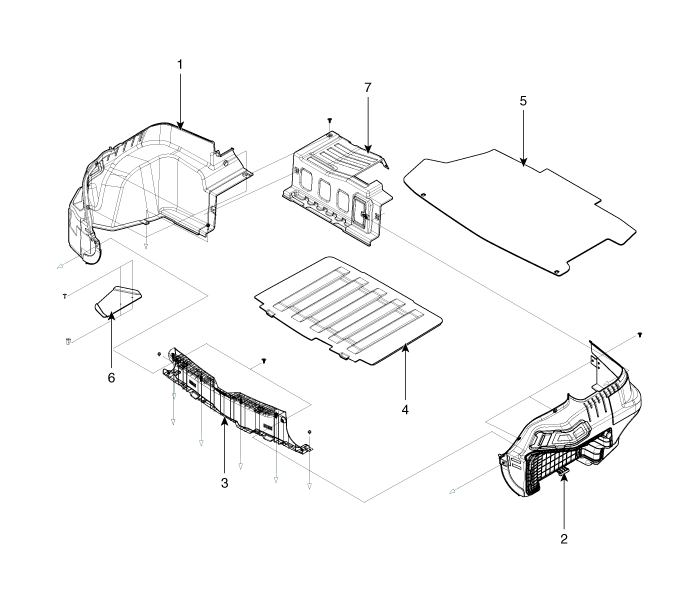

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Board & jack handle assembly

5. Luggage cover met
6. Luggage side board
7. Battery case trim
