Kia Optima Hybrid: SRSCM / Weight Classification System (WCS) Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Restraint / SRSCM / Weight Classification System (WCS) Components and Components Location

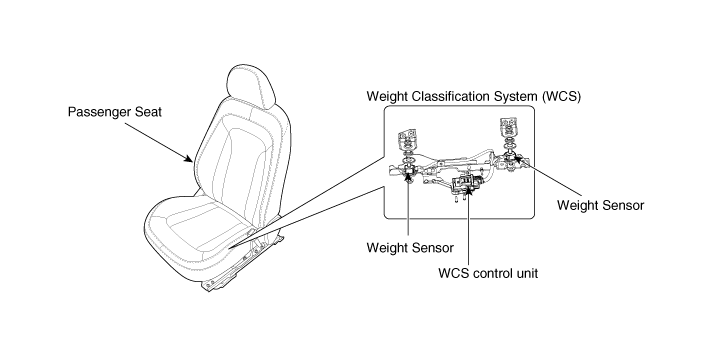

Components

Weight Classification System (WCS) Description and Operation

Description In contrast to the initial one-stage airbag systems, newer restraint systems involve complex logic to select, or alternatively suppress, various levels of safety system deployment. Inherent ...

Weight Classification System (WCS) Repair procedures

Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front passenger seat assembly. (Refer to the Body group - "Seat") 3. Remove the ...
