Kia Optima Hybrid: Power Windows / Components and Components Location

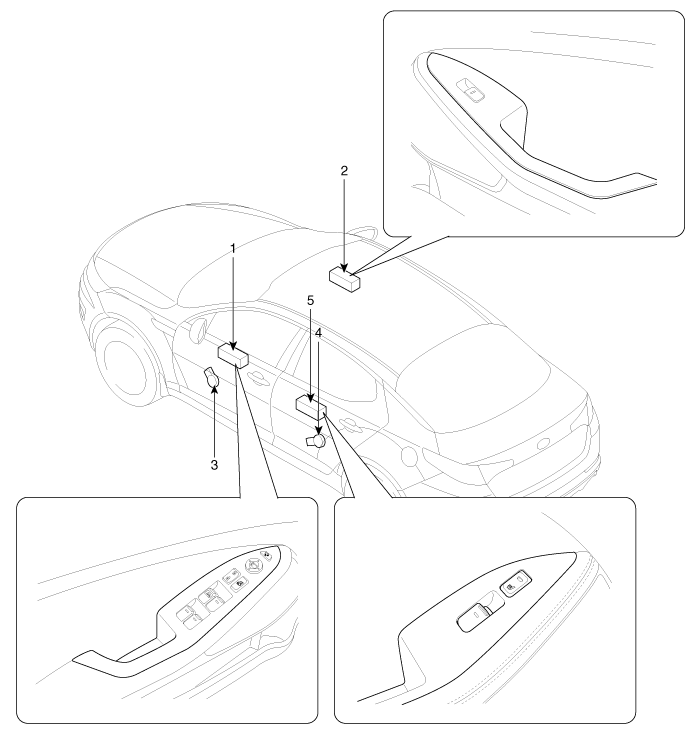

Component Location

1. Driver power window main switch
2. Passenger power window switch
3. Front window motor
4. Rear window motor
5. Rear window switch

Power Windows

...

Description and Operation

Operation Function Of Safety Power Window When all door (Front, Rear) power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force of 100N during ...
