Kia Optima Hybrid: Power Door Locks / Power Door Lock Relay Repair procedures

Inspection
Diagnosis With GDS
1.
It will be able to diagnose defects of power door lock with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.
Select model and "BCM".
3.
Select the "SJB" to check.
4.

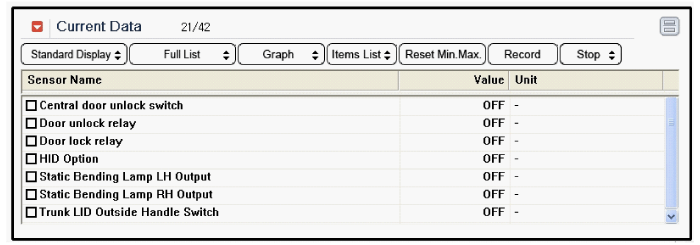

Select "Current data", if you will check current data of power door lock system. It provides input/output status of SJB.

5.

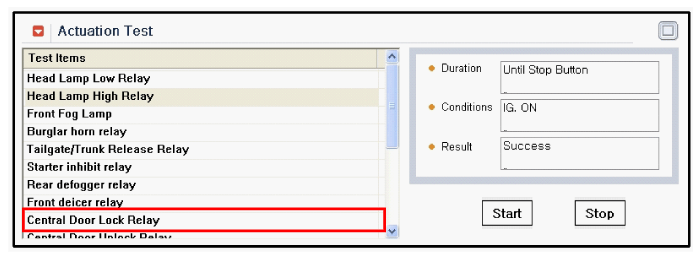

If you will check the power door lock operation forcefully, select "Actuation test".

Power Door Lock Actuators Repair procedures

Inspection Front Door Lock Actuator Inspection 1. Remove the front door trim. (Refer to the BD group - "Front door") 2. Remove the front door module. 3. Disconnect the 7P connector from the actuator. 4. ...

Power Door Lock Switch Repair procedures

Inspection Driver Door Lock Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim panel. (Refer to the BD group - "Front door") 3. Disconnect the connector from ...
