Kia Optima Hybrid: Audio / Troubleshooting

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Audio / Troubleshooting

Troubleshooting

Customer Complaint Analysis Check Sheet

There are several areas where a problem can occur: wiring harness, the radio, the CD player, and speaker. Troubleshooting enables you to confine the problem to a particular area.

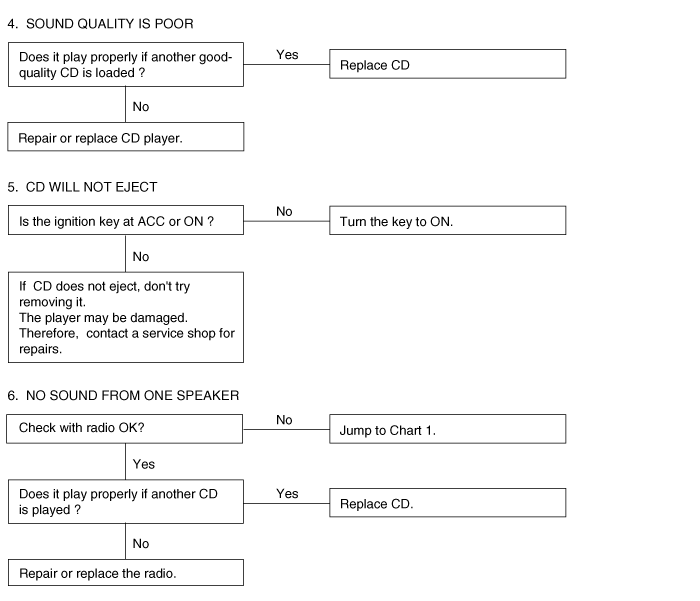

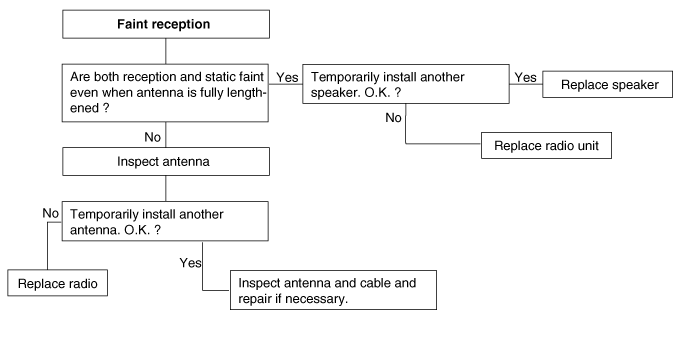

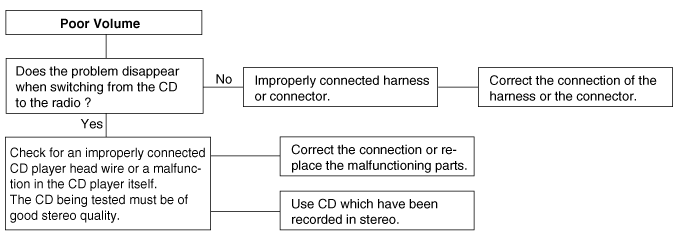

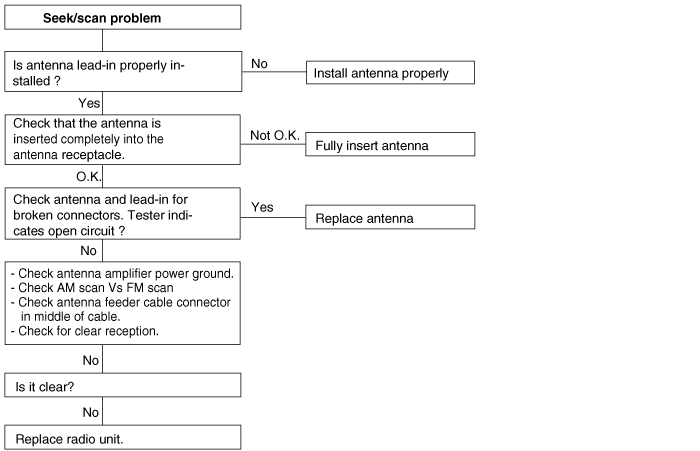

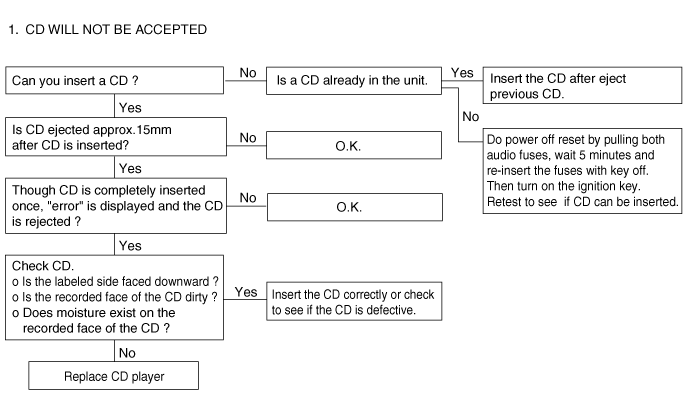

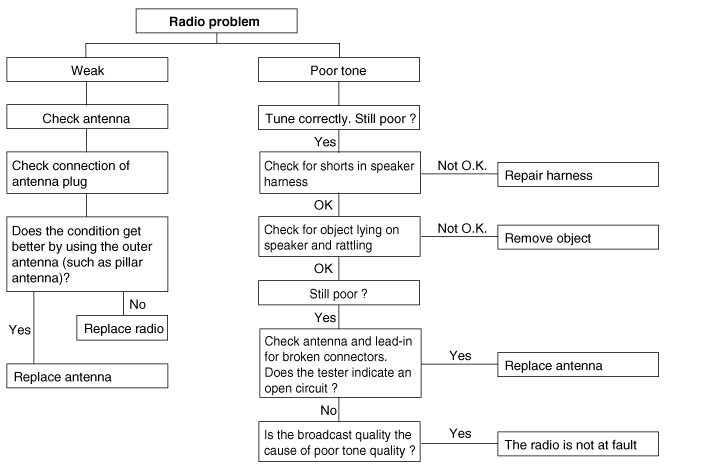

Chart 1

Chart 2

Chart 3

Chart 4

Chart 5

Chart 6

Chart 7
