Kia Optima Hybrid: Indicators And Gauges / Trip Switch Schematic Diagrams

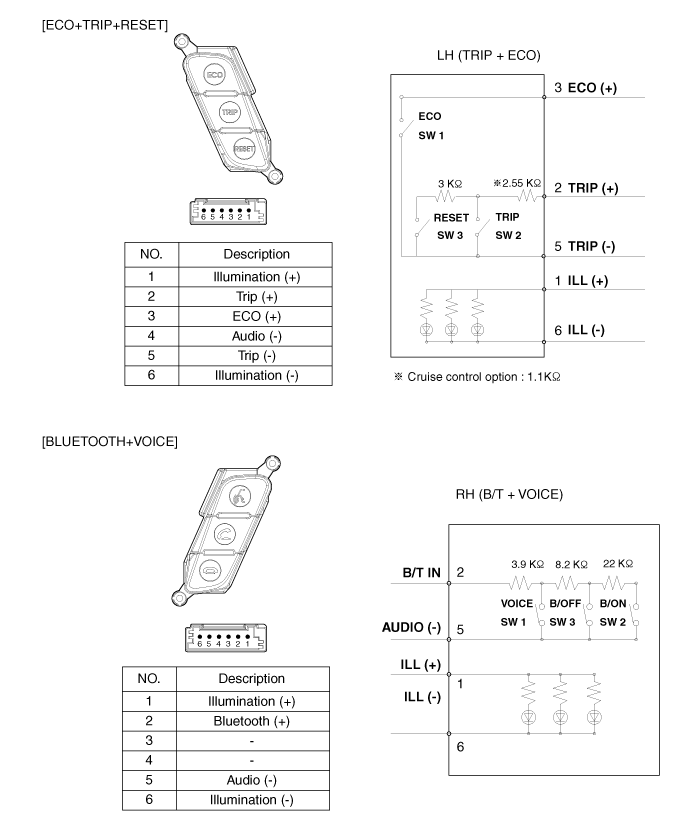

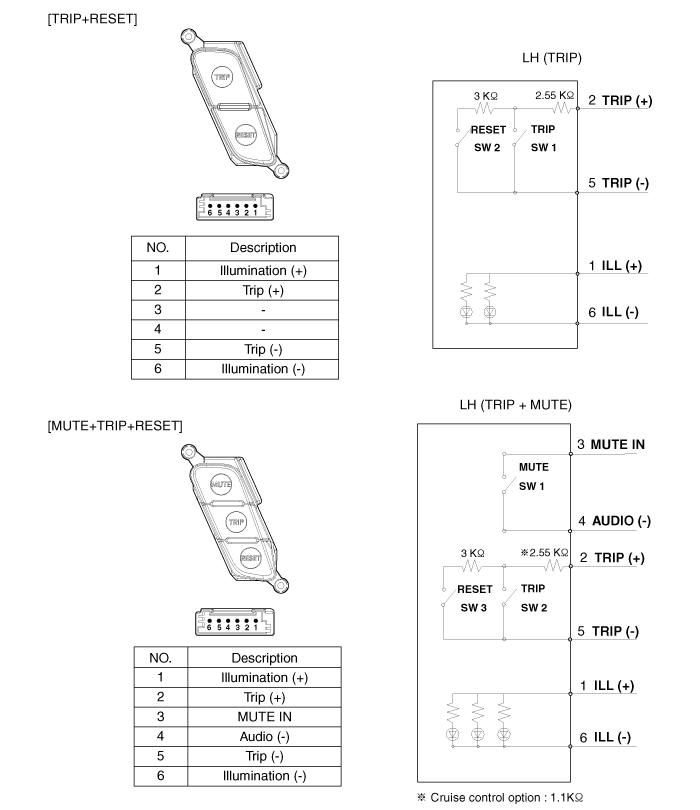

Circuit Diagram

Instrument Cluster Repair procedures

Inspection NORefSymbolNameSignal InputMessage NameSignal controlSignal Value(X: Don’t care)Illumination/Power1TurnLeftB-CANTurn LH Signal Lamp Switch Status for indicator in CLULED/B+2TurnRightB-CANTurn ...

Trip Switch Repair procedures

Inspection 1. Check the audio remote control switch for resistance between terminals in each switch position. [Trip + Reset] SwitchConnector terminalResistance (±5%)Reset3 - 5 (LH)5.54 k?Trip3 - 5 (LH)2.54 ...
