Kia Optima Hybrid: Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic Diagrams

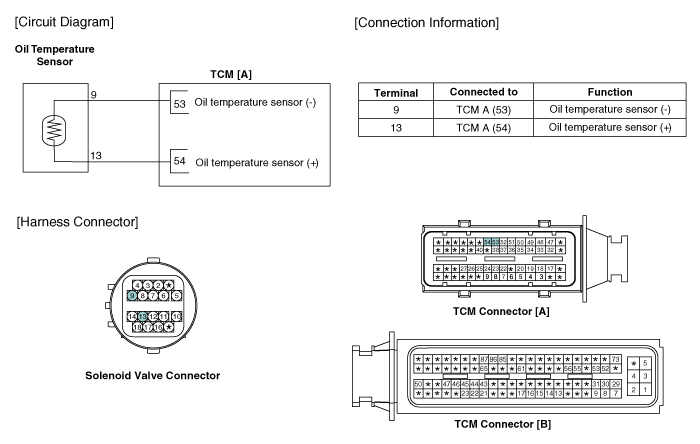

Circuit Diagram

Transaxle Oil Temperature Sensor Specifications

Specifications Type: Negative Thermal Coefficient Type Temp.(°C)°FResistance (k?)(-40)-4046.8(-20)-4.015.6(0)32.05.88(20)68.02.51(40)104.01.17(60)140.00.59(80)176.00.32(100)212.00.18(120)248.00.11(140)284.00.07(165)329.00.04 ...

Transaxle Oil Temperature Sensor Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose ...
