Kia Optima Hybrid: Electric Power Steering / Steering Gear box Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Steering System / Electric Power Steering / Steering Gear box Components and Components Location

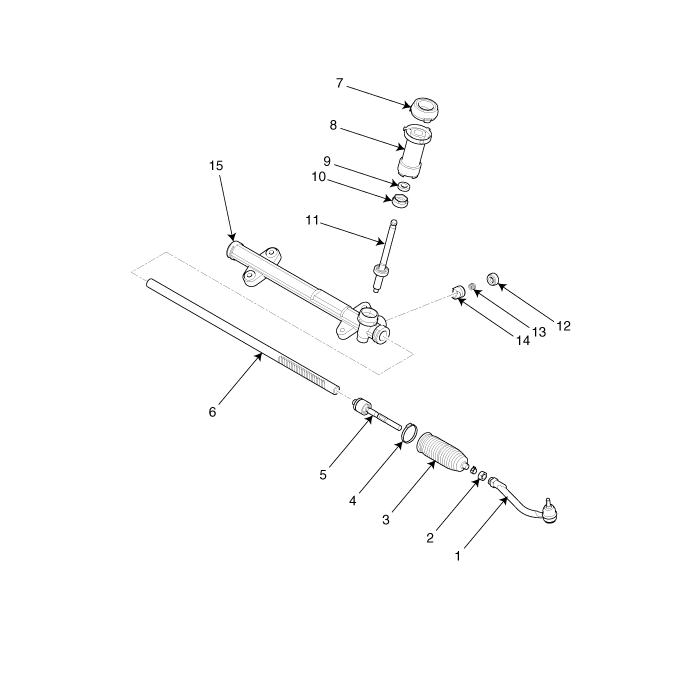

Components

1. Tie rod end
2. Lock nut
3. Bellows
4. Bellows band
5. Tie rod
6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug
11. Pinion assembly
12. Yoke plug
13. Yoke spring
14. Support yoke assembly
15. Rack housing

Steering Column and Shaft Repair procedures

Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead. 3. Push the pin ...

Steering Gear box Repair procedures

Replacement 1. Remove the front wheel & tire. Tightening torque : 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage to the hub bolts when removing the front ...
