Kia Optima Hybrid: Automatic Transaxle Control System / SS-A Solenoid Valve (ON/OFF) Schematic Diagrams

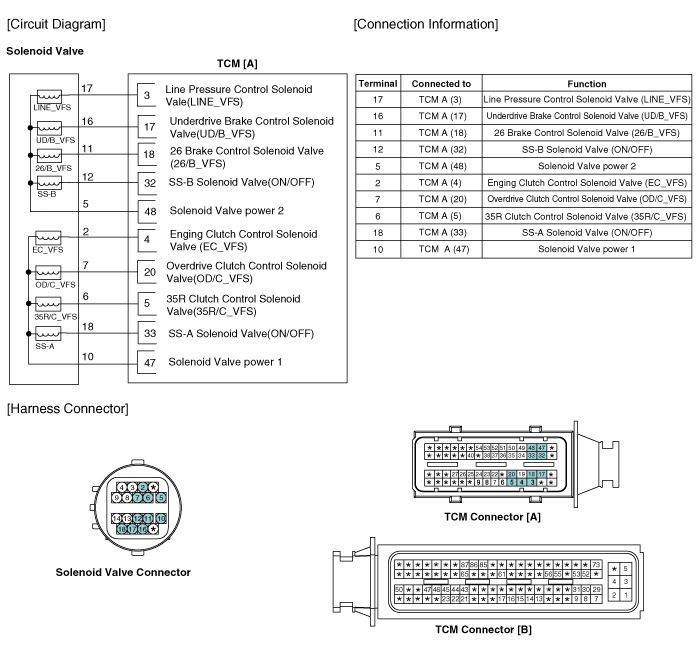

Circuit Diagram

SS-A Solenoid Valve (ON/OFF) Specifications

Specifications ON/OFF Solenoid Valve(SS-A, SS-B) Control type : Normal low type Control pressure kpa(kgf/cm?, psi)490.33 (5.0, 71.12) Internal resistance(?)10 ~ 11 ...

SS-A Solenoid Valve (ON/OFF) Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose ...
