Kia Optima Hybrid: SRSCM / Side Impact Sensor (SIS) Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Restraint / SRSCM / Side Impact Sensor (SIS) Components and Components Location

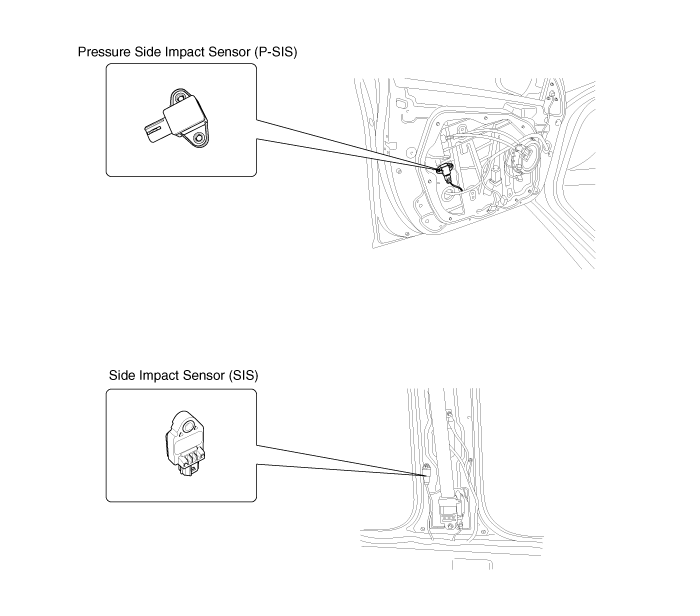

Components

Side Impact Sensor (SIS) Description and Operation

Description Side Impact Sensor (SIS) system consists of two P-SIS which are installed at each center of the front door module (LH and RH) and two SIS which are installed at each center pillar nearby (LH ...

Side Impact Sensor (SIS) Repair procedures

Removal Pressure Side Impact Sensor     • Removal of the airbag must be performed according to the precautions/procedures described previously. • Before disconnecting the side impact sensor ...
