Kia Optima Hybrid: Interior / Roof Trim Components and Components Location

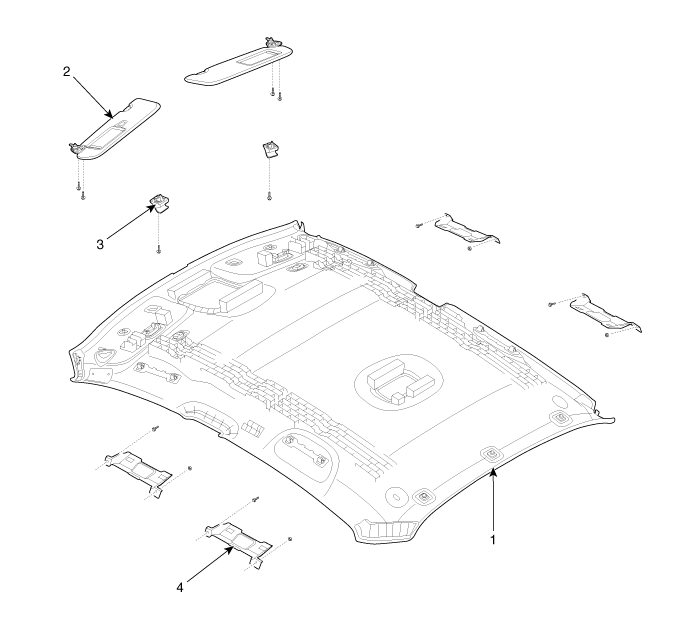

Components

1. Roof trim
2. Sunvisor
3. Retainer
4. Assist handle bracket

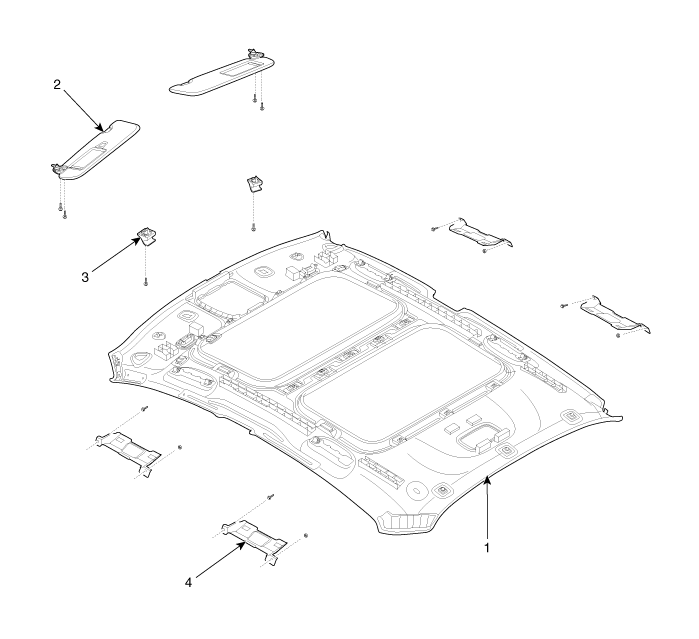

Components [Panoramaroof]

1. Roof trim
2. Sunvisor
3. Retainer
4. Assist handle bracket

Crash Pad Repair procedures

Replacement Cluster Replacement     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • Put on ...

Roof Trim Repair procedures

Replacement Sunvisor Replacement     • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. • Put on gloves to protect your hands. 1. Loosen ...
