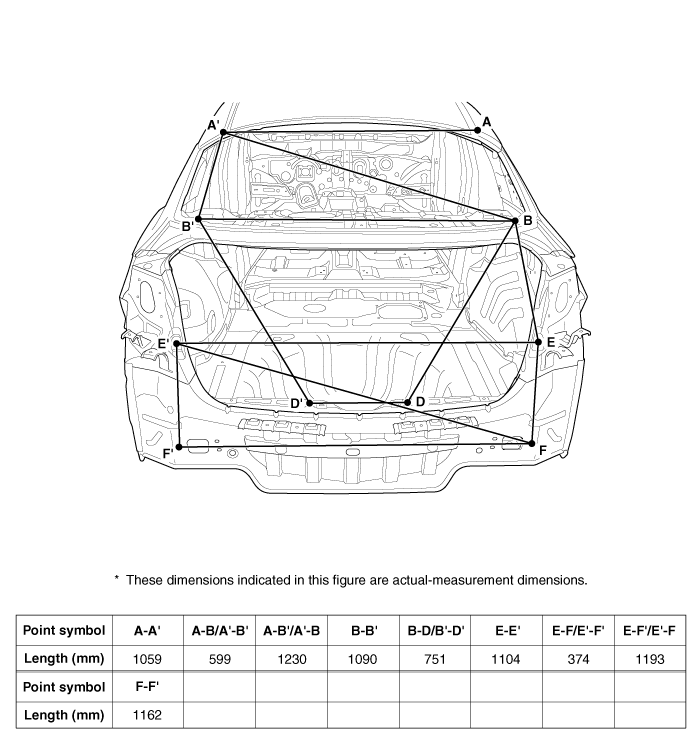

Kia Optima Hybrid: Body Dimensions / Rear Body Body Repair

Side outer panel rear corner

Rear package tray trim mounting hole
(O10)
Rear transverse trim mounting hole
(O8.4)


Rear combination lamp mounting hole
(8.5X8.5)
Rear bumper mounting hole (11X13)
