Kia Optima Hybrid: Cooling System / Radiator Components and Components Location

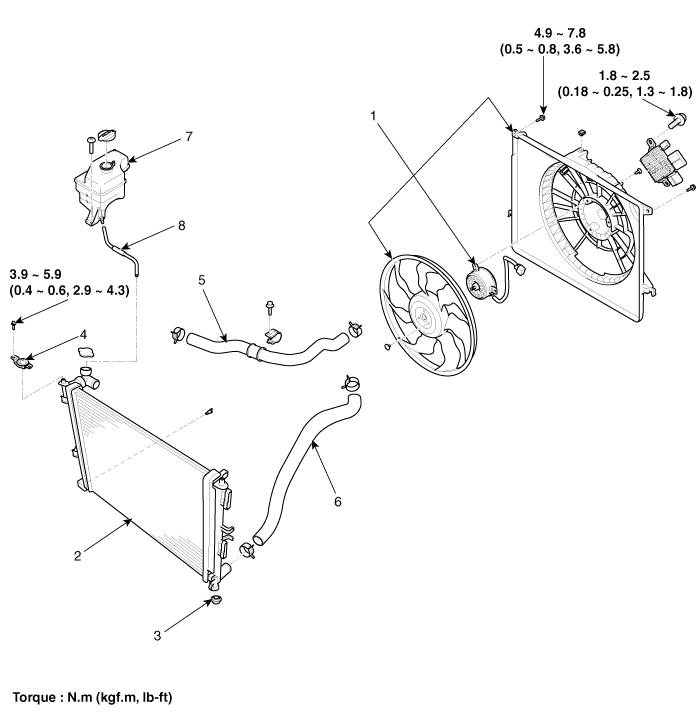

Components

1. Cooling fan assembly
2. Radiator assembly
3. Mounting insulator
4. Radiator mounting bracket
5. Radiator upper hose
6. Radiator lower hose
7. Reservoir tank
8. Over flow hose

Coolant Repair procedures

Refilling And Bleeding     Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the radiator.     When ...

Radiator Repair procedures

Inspection Radiator Cap Testing 1. Remove the radiator cap, wet its seal with engine coolant, and then install it on a pressure tester. 2. Apply a pressure of 93.16 ~ 122.58kPa (0.95 ~ 1.25kgf/cm?, 13.51 ...
