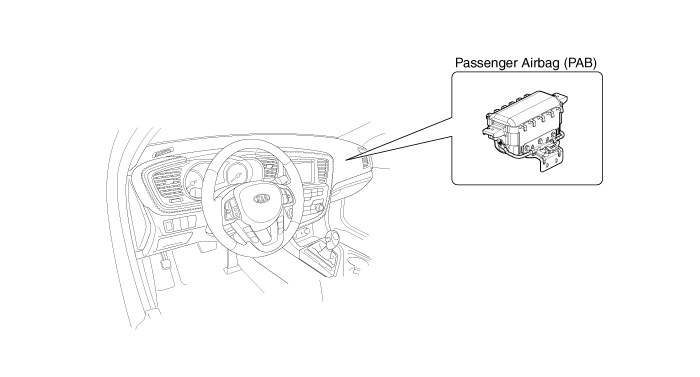

Components

Passenger Airbag (PAB) Module Description and Operation

Description The passenger airbag (PAB) is installed inside the crash pad and protects the front passenger in the event of a frontal crash. The SRSCM determines if and when to deploy the PAB.     ...

Passenger Airbag (PAB) Module Repair procedures

Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the glove box housing. (Refer to the Body group- crash pad). 3. Disconnect the passenger ...
