Kia Optima Hybrid: Parking Brake System / Parking Brake Assembly Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Brake System / Parking Brake System / Parking Brake Assembly Components and Components Location

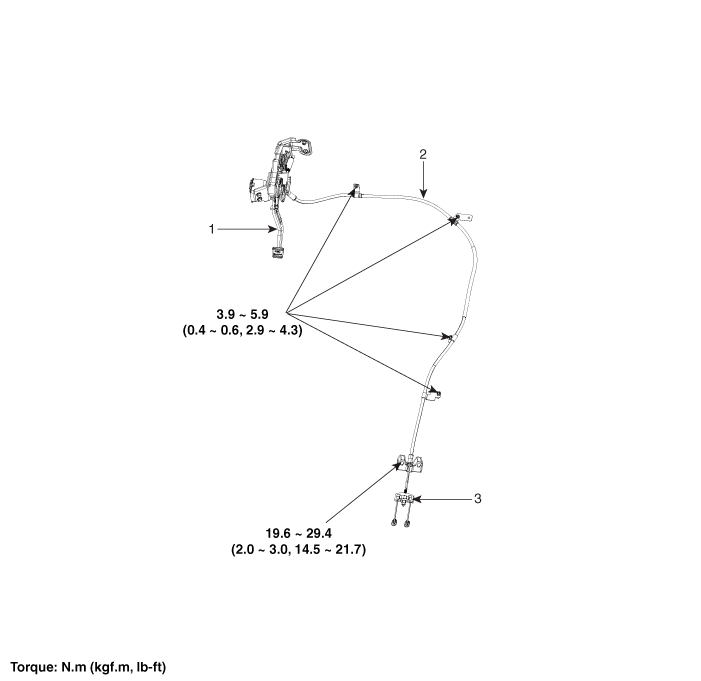

Components (1)

1. Parking brake pedal
2. Parking brake cable
3. Equalizer assembly

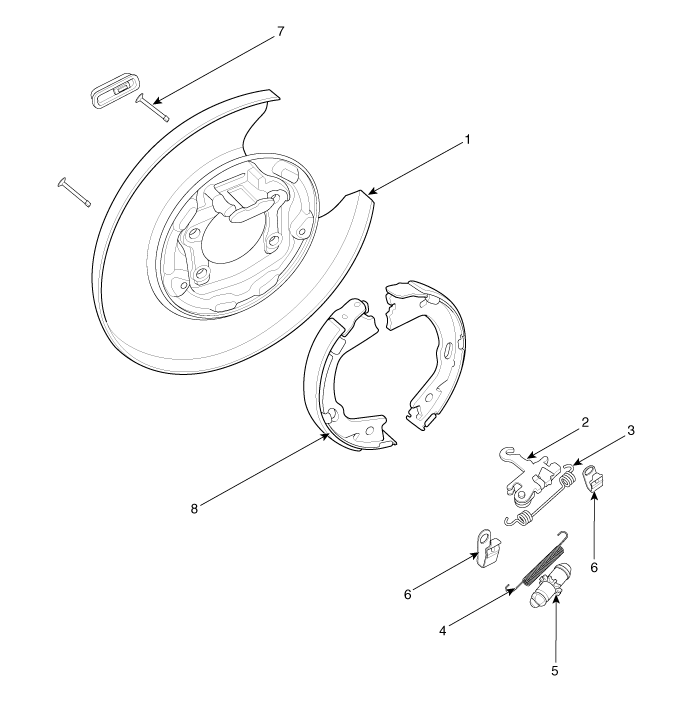

Components (2)

1. Backing plate
2. Operating lever
3. Upper spring
4. Lower spring
5. Adjuster
6. Shoe hold down spring
7. Shoe hold down pin
8. Shoe

Parking Brake System

...

Parking Brake Assembly Repair procedures

Removal Parking Brake Pedal 1. Turn ignition OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel and reinforcing panel. (Refer to the Body group - crash pad) 3. Remove ...
