Kia Optima Hybrid: Parking Assist System / Parking Assist Sensor Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Parking Assist System / Parking Assist Sensor Components and Components Location

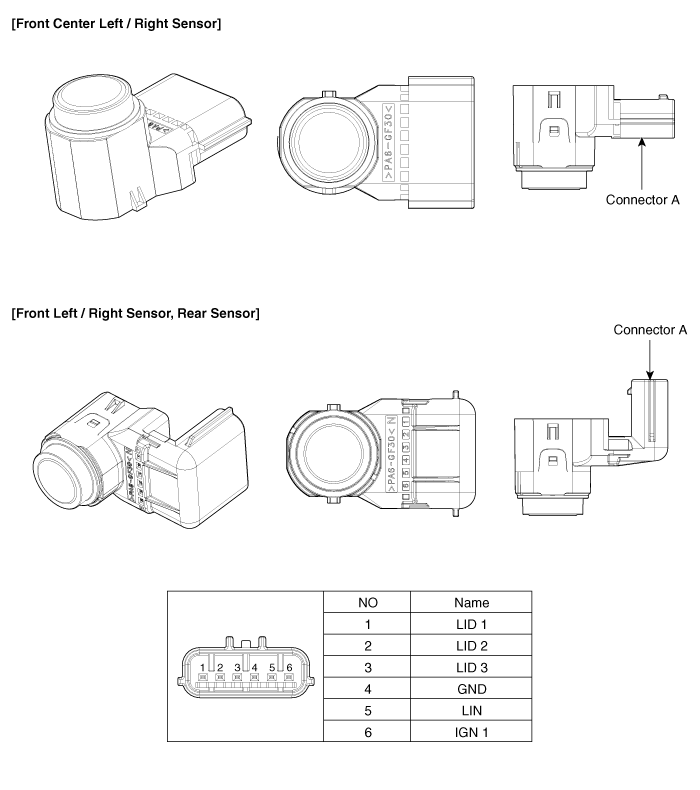

Component

Description and Operation

System Overview PAS(Parking Assist System) is an electronic driving aid device warning driver to be cautious when they park or speed low after detecting an object on side and behind of vehicle by using ...

Parking Assist Sensor Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front/rear bumper. (Refer to Body - "Front Bumper cover") (Refer to Body - "Rear Bumper cover") 3. Disconnect the connector (A) from ...
