Kia Optima Hybrid: Exterior / Panoramaroof Components and Components Location

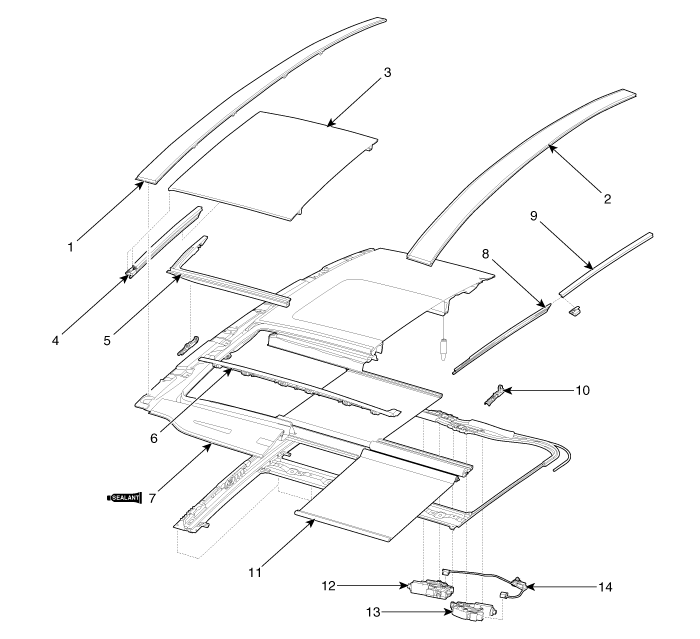

Components

1. Roof moulding [RH]
2. Roof moulding [LH]
3. Movable glass
4. Cover [RH]
5. Wind deflector assembly
6. Front cover assembly
7. Panoramaroof frame assembly
8. Cover [LH]
9. Shield cover
10. Wind deflector bar link
11. Roller blind assembly
12. Movable glass motor assembly
13. Roller blind motor assembly
14. Harness assembly

Body Side Moulding Repair procedures

Replacement Roof Moulding Replacement     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...

Panoramaroof Repair procedures

Replacements Movable glass Replacement 1. Open the movable glass fully. 2. Remove the folding cover (A). 3. After loosening the mounting screws, then remove the movable glass (A).     • Do ...
