Kia Optima Hybrid: Automatic Transaxle Control System / Overdrive Clutch Control Solenoid Valve (OD/C_VFS) Schematic Diagrams

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Overdrive Clutch Control Solenoid Valve (OD/C_VFS) Schematic Diagrams

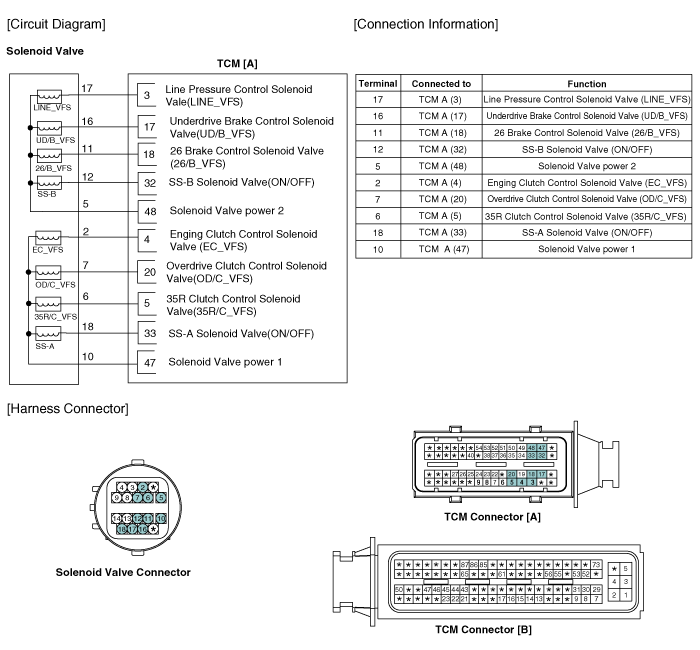

Circuit Diagram

Overdrive Clutch Control Solenoid Valve (OD/C_VFS) Specifications

Specifications Direct control VFS [OD/C] Control type : Normal high type Control Pressure kpa(kgf/cm?, psi)500.14 ~ 9.81(5.1 ~ 0.1, 72.54 ~ 1.42)Current value (mA)50 ~ 850 Internal resistance (?)5.1 ...

Overdrive Clutch Control Solenoid Valve (OD/C_VFS) Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: NVLD(Natural Vacuum Leakage Detection) Repair procedures


Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Disconnect the NVLD connector (A). 3. Disconnect the ventilation hoses (B,C). 4. Remove the NVLD after by loosening the bolts (A). Installation • Install the component with the specified torques. • Note that ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Manifold Absolute Pressure Sensor (MAPS) Repair procedures


Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. Test ConditionOutput Voltage (V)IG ON3.9 ~ 4.1Idle0.8 ~ 1.6 Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Disconnect the manifold ...
