Kia Optima Hybrid: Hydraulic System / Oil Pump Uni t(OPU) Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Automatic Transaxle System / Hydraulic System / Oil Pump Uni t(OPU) Components and Components Location

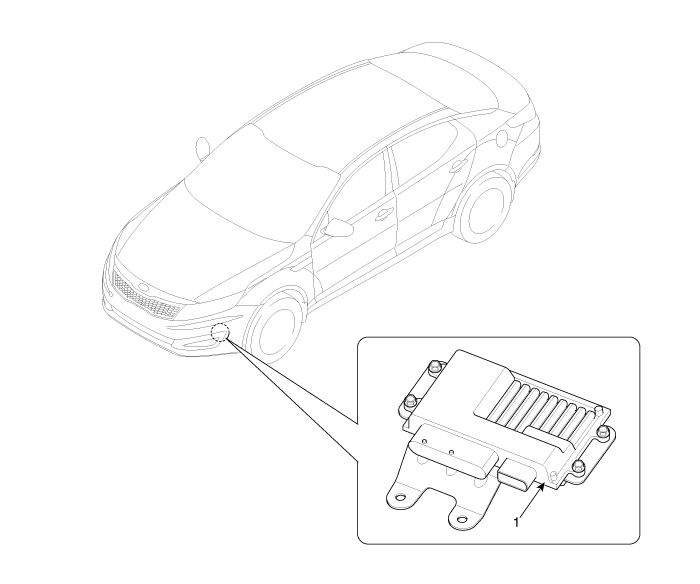

Components Location

1. Oil Pump Unit (OPU)

Oil Pump Uni t(OPU) Specifications

Specifications Operating voltage (V)12 Current15 ~ 20A (normal), 45A (Max.) ...

Oil Pump Uni t(OPU) Schematic Diagrams

OPU connector and terminal function OPU terminal function [A] PinDescription1Main relay power2Ground3Motor phase power(U)4Motor phase power(V)5Motor phase power(W) [B] PinDescription1Battery power (+)2Battery ...
