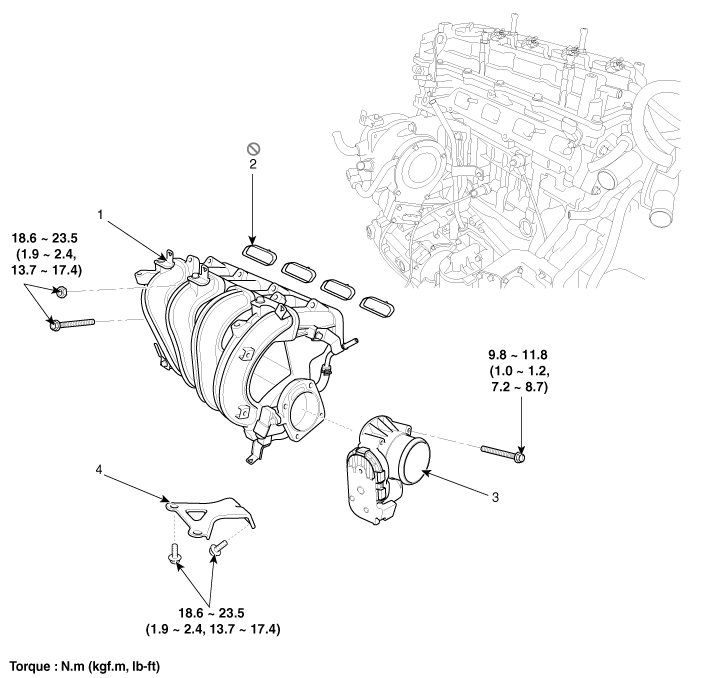

Components

1. Intake manifold assembly
2. Intake manifold gasket

3. ETC (Electronic throttle body)
4. Intake manifold stay

Intake And Exhaust System

...

Intake Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. Tightening torque: 4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft) 3. Remove the air cleaner assembly. (Refer ...
