Kia Optima Hybrid: Engine Control System / Injector Schematic Diagrams

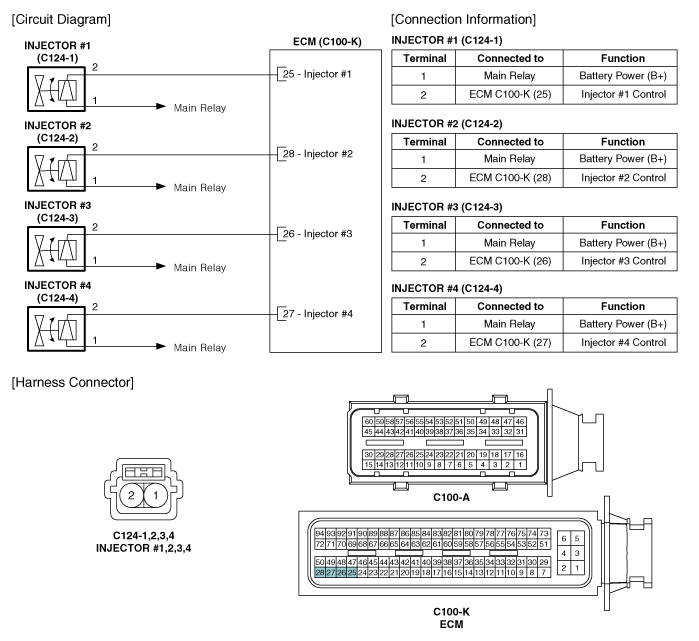

Circuit Diagram

Injector Specifications

Specification ItemSpecificationCoil Resistance (?)13.8 ~ 15.2 [20°C(68°F)] ...

Injector Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance between the injector terminals 1 and 2. 4. Check that the resistance is within the specification. ...
