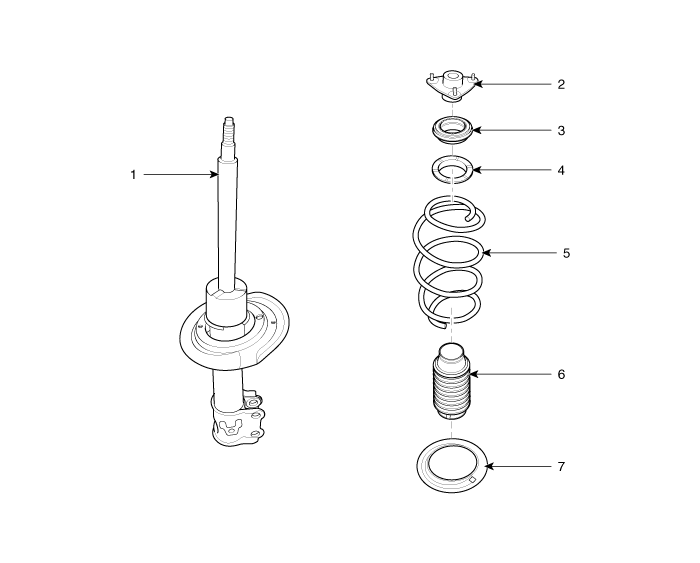

Components

1. Strut assembly
2. Insulator
3. Bearing
4. Spring upper pad
5. Coil spring
6. Dust cover
7. Spring lower pad

Components and Components Location

Components Location 1. Drive shaft2. Lower arm3. Front disk4. Front strut assembly5. Steering gearbox6. Front stabilizer bar7. Sub frame ...

Front Strut Assembly Repair procedures

Replacement 1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9N.m(9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage to the hub bolts when removing the front wheel ...
