Kia Optima Hybrid: SRSCM / Front Impact Sensor (FIS) Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Restraint / SRSCM / Front Impact Sensor (FIS) Components and Components Location

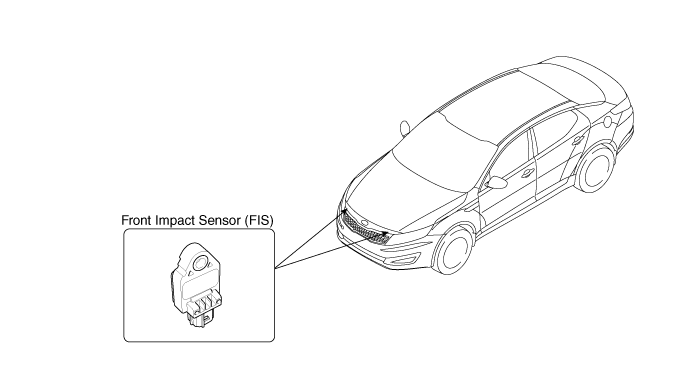

Components

Front Impact Sensor (FIS) Description and Operation

Description The front impact sensor (FIS) is installed in the Front End Module (FEM). They are remote sensors that detect acceleration due to a collision at its mounting location. The primary purpose of ...

Front Impact Sensor (FIS) Repair procedures

Removal     • Removal of the airbag must be performed according to the precautions/ procedures described previously. • Before disconnecting the front impact sensor connector, disconnect the ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Underdrive Brake Control Solenoid Valve (UD/B_VFS) Repair procedures


Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose (A). (2) Disconnect the air intake hose (B) and then remove the air cleaner assembly (C). Tightening ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Components and Components Location


Components 1. Driver Airbag (DAB)2. Steering Wheel3. Clock Spring4. Seat Belt Pretensioner (BPT)5. Pressure Side Impact Sensor (P-SIS)6. Side Impact Sensor (SIS)7. Side Airbag (SAB)8. Passenger Airbag (PAB)9. Front Impact Sensor (FIS)10. Curtain Airbag (CAB)11. Supplemental Restraint System Control Module(SRSCM)12. ...
