Kia Optima Hybrid: Air Conditioning System / Electric A/C compressor Components and Components Location

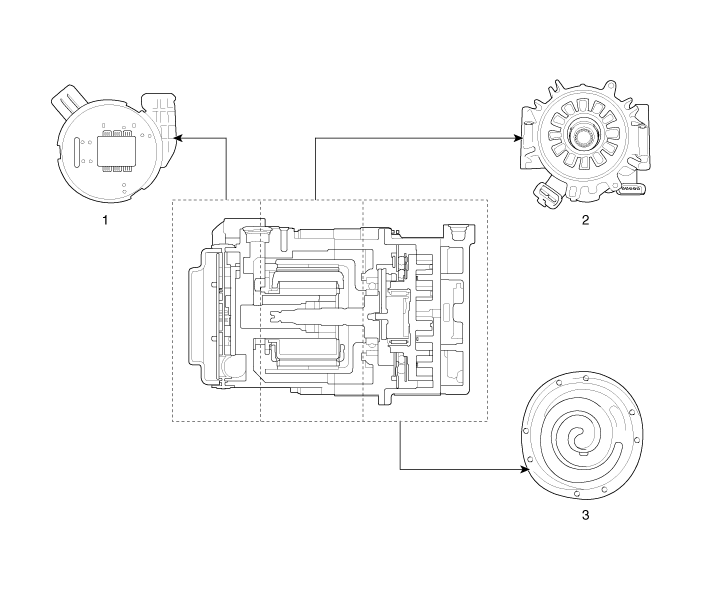

Components

1. Control Part
2. Motor Part
3. Compression Part

Electric A/C compressor Specifications

Specification ModelESC33i MotroBLDC MotorControl TypeCANCompression TypeScrollCapacity33cc/revOperating Voltage Range190~320VRated Voltage288VMount TypeEngine Mounting, 6 Point Mounting ...

Electric A/C compressor Description and Operation

Description Through the development of electric compressors, fuel efficiency is improved and air conditioner can be implemented when the engine stopped.Operation Principle Compression Part One of the scrolls ...
