Kia Optima Hybrid: Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

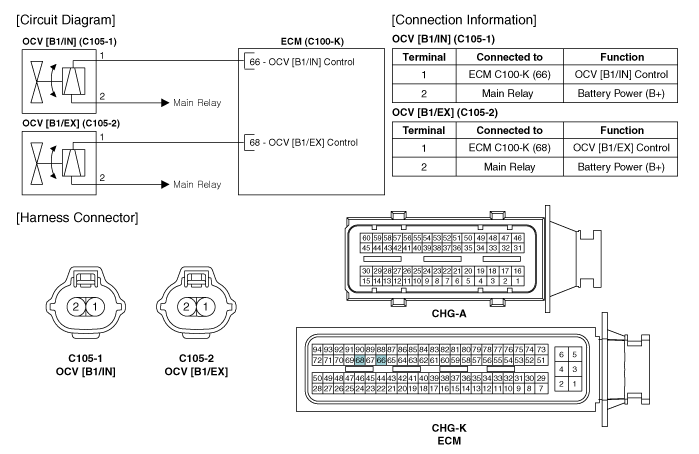

Circuit Diagram

CVVT Oil Control Valve (OCV) Specifications

Specification ItemSpecificationCoil Resistance (?)6.9 ~ 7.9 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4. Check that the resistance is within the specification. Specification: ...
