Kia Optima Hybrid: Hands Free System / Components and Components Location

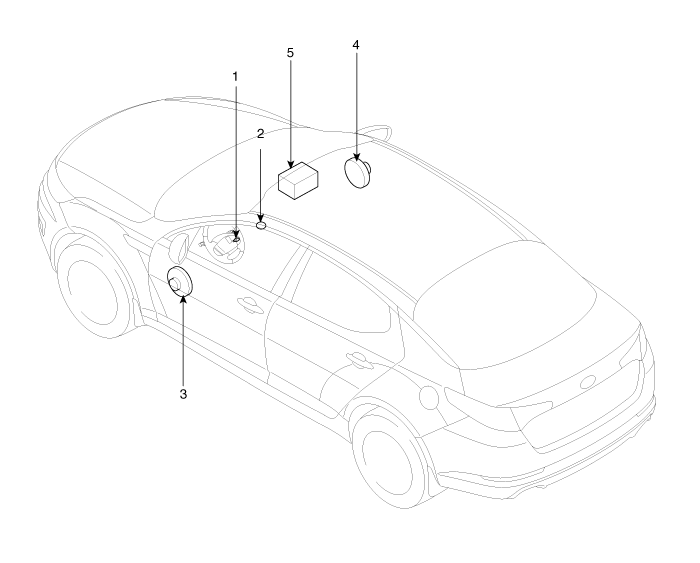

Components

1. Hands free call switch
2. Mic
3. Front left speaker
4. Front right speaker
5. Audio head unit (hands free control)

? There is no hands free jack. This system supports Bluetooth(wireless system).
