Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Windshield Deicer / Components and Components Location

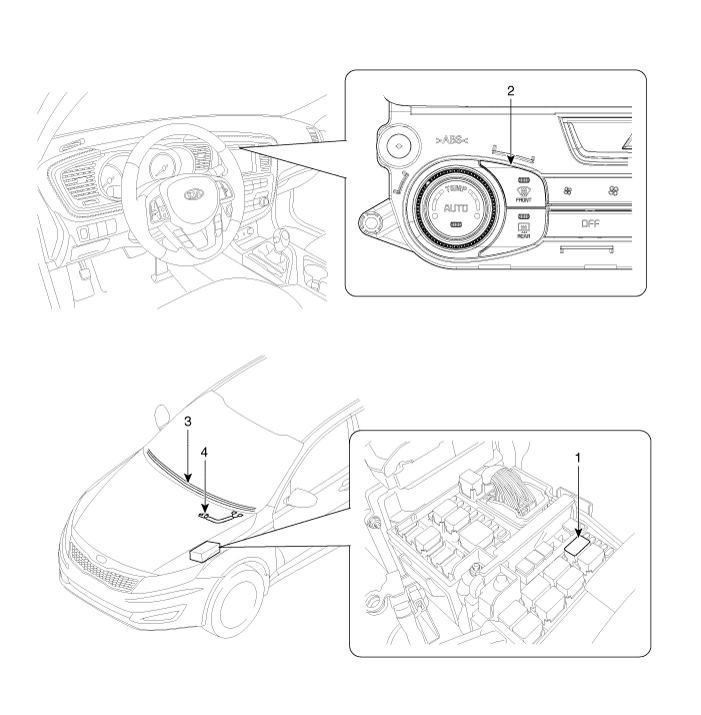

Component Location

1. Windshield deicer relay (Built-in engine room relay box)
2. Windshield deicer switch

3. Windshield deicer
4. Deicer connector

Description Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. Body control module receives an ...
