Kia Optima Hybrid: Seat & Power Seat / Rear Seat Components and Components Location

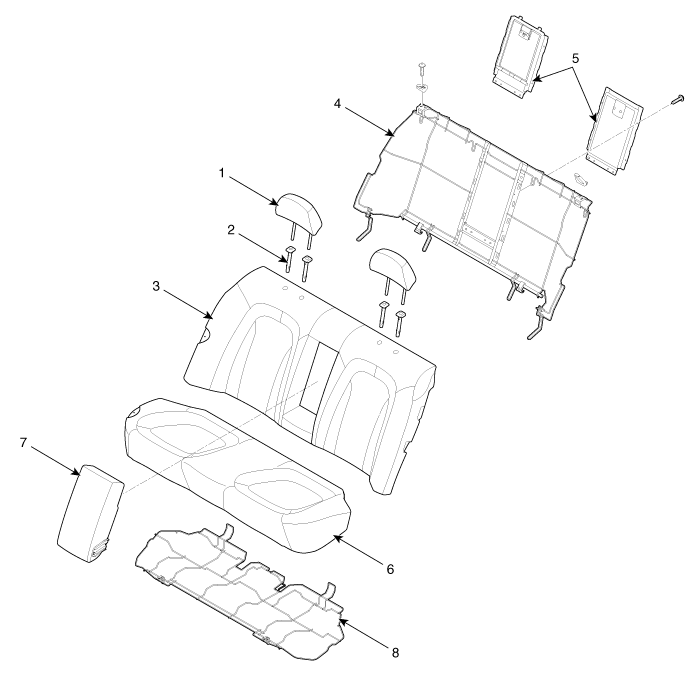

Components - 1 [ General ]

1. Headrest
2. Headrest guide
3. Rear seat back cover
4.Rear seat back frame assembly
5. Rear back armrest board
6. Rear seat cushion cover
7. Rear back armrest
8. Rear seat cushion frame assembly

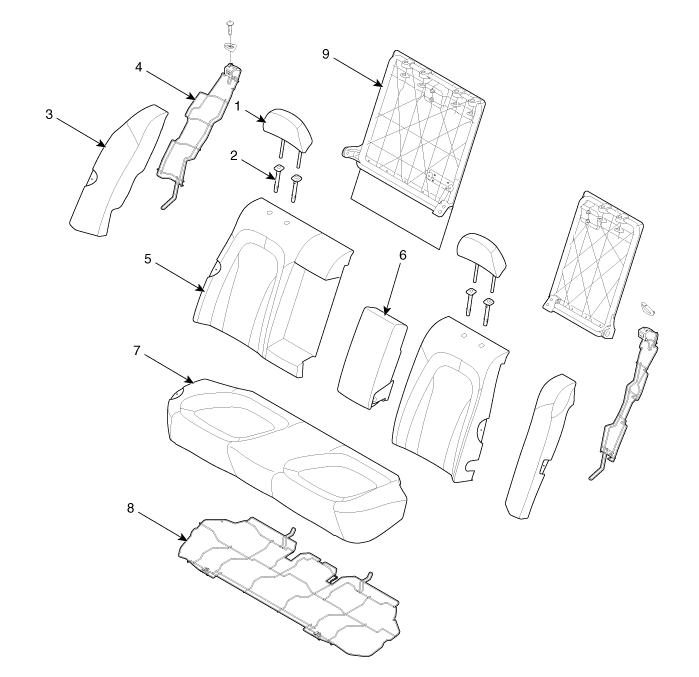

Components - 2 [ Seat folding ]

1. Headrest
2. Headrest guide
3. Rear side cover
4. Rear side frame assembly
5. Rear seat back cover
6. Rear back armrest
7. Rear seat cushion cover
8. Rear seat cushion frame assembly
9. Rear seat back frame assembly
