Kia Optima Hybrid: Power Door Locks / Components and Components Location

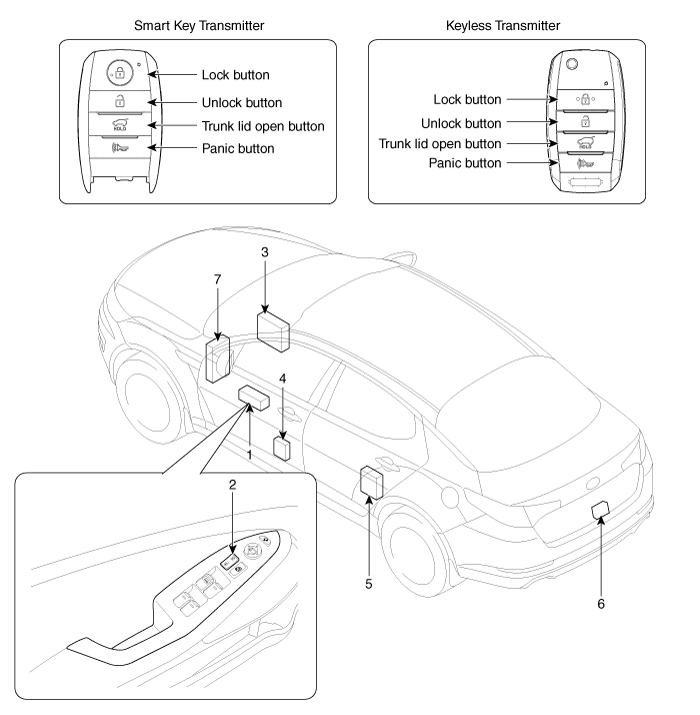

Component Location

1. Driver power window switch
2. Door lock switch
3. BCM (Body Control Module)
4. Front door lock actuator
5. Rear door lock actuator
6. Trunk lid open actuator
7. SJB (Smart Junction Box)

Power Door Locks

...

Power Door Lock Actuators Repair procedures

Inspection Front Door Lock Actuator Inspection 1. Remove the front door trim. (Refer to the BD group - "Front door") 2. Remove the front door module. 3. Disconnect the 7P connector from the actuator. 4. ...
