Kia Optima Hybrid: Fuel Filler Door / Components and Components Location

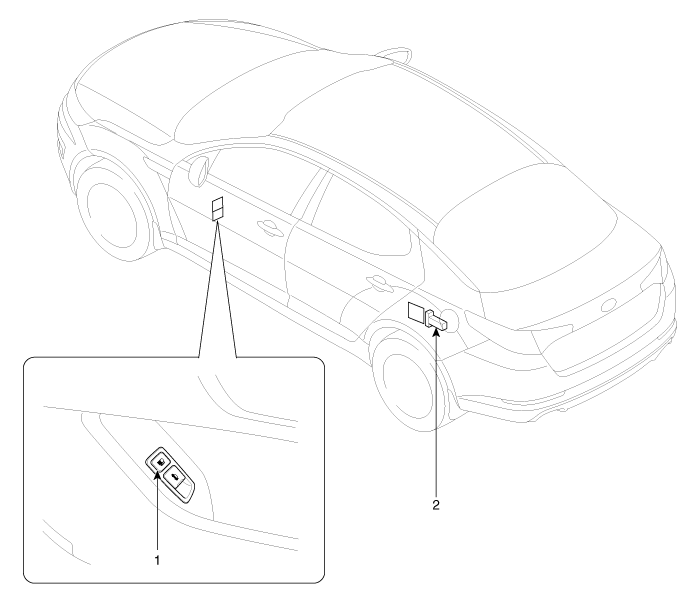

Component Location

1. Fuel filler door open switch
2. Fuel filler door release actuator

Fuel Filler Door

...

Fuel Filler Door Release Actuator Repair procedures

Inspection 1. Remove the trunk room left side trim. (Refer to the BD group - "Interior trim") 2. Remove the fuel filler door release actuator (A) after loosening the mounting bolts. 3. Disconnect the release ...
