Kia Optima Hybrid: Smart key System / Components and Components Location

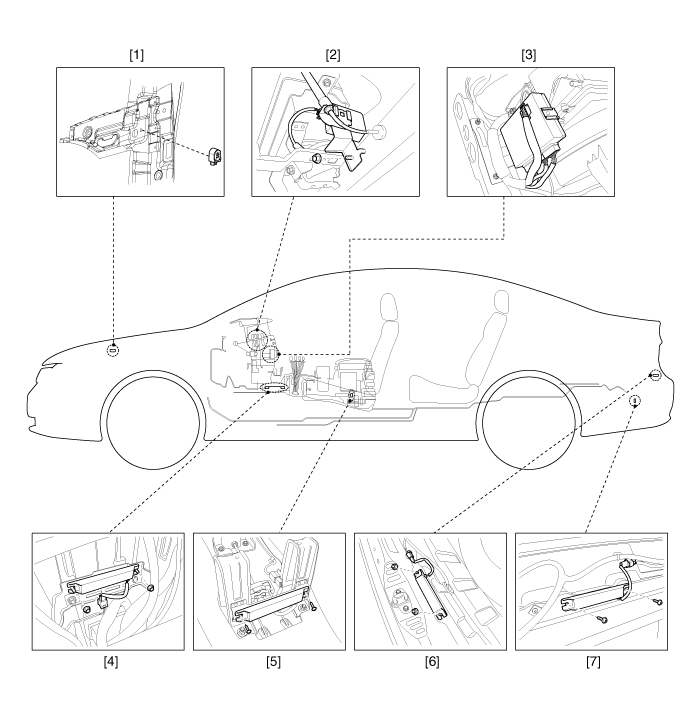

Component Location (1)

1. Buzzer
2. RF receiver
3. Smart key unit
4. Interior antenna 1
5. Interior antenna 2
6. Trunk antenna
7. Bumper antenna

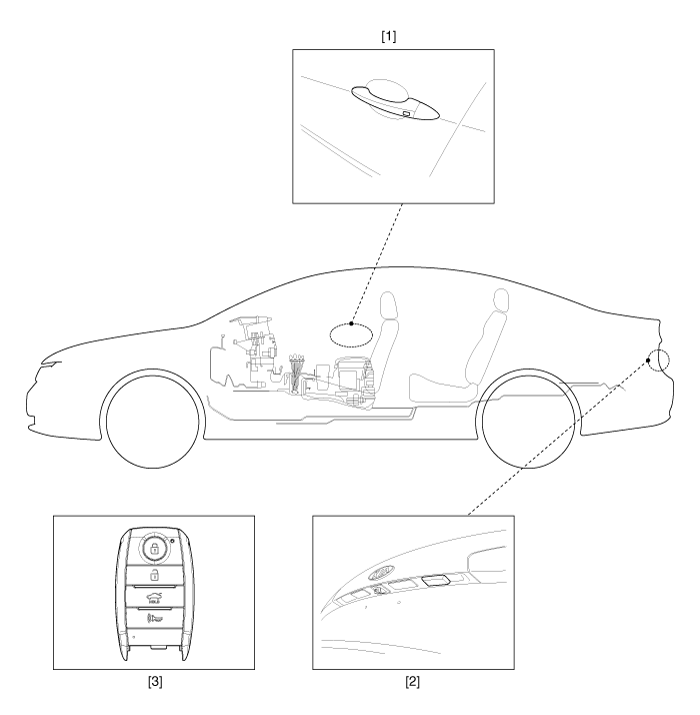

Component Location (2)

1. Door outside handle
2. Trunk lid open switch
3. FOB key

Specifications

Specification Smart Key Unit ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-30°C ~ 75°C (-22°F ~ 167°F)LoadMax. 2.9mA (When welcome light off)(When welcome light ...

Description and Operation

Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed. The ...
