Kia Optima Hybrid: Fuel Delivery System / Components and Components Location

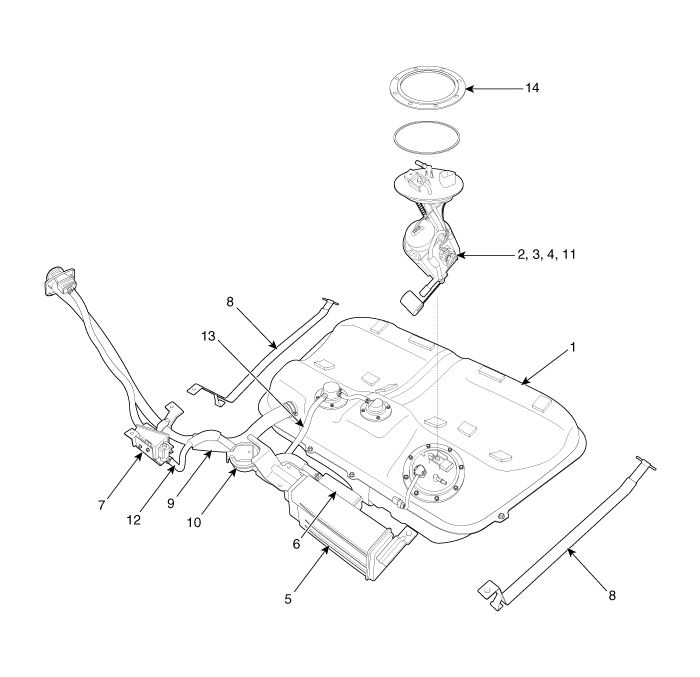

Components Location

1. Fuel Tank
2. Fuel Pump
3. Fuel Filter
4. Fuel Pressure Regulator
5. Canister
6. Auxiliary Canister
7. Fuel Tank Air Filter
8. Fuel Tank Band
9. Fuel Filler Hose
10. Natural Vacuum Leakage Detection (NVLD)
11. Fuel Level Sender (FLS)
12. Ventilation Hose
13. Vapor Tube
14. Fuel Pump Plate Cover
