Kia Optima Hybrid: Engine Control System / Canister Close Valve (CCV) Schematic Diagrams

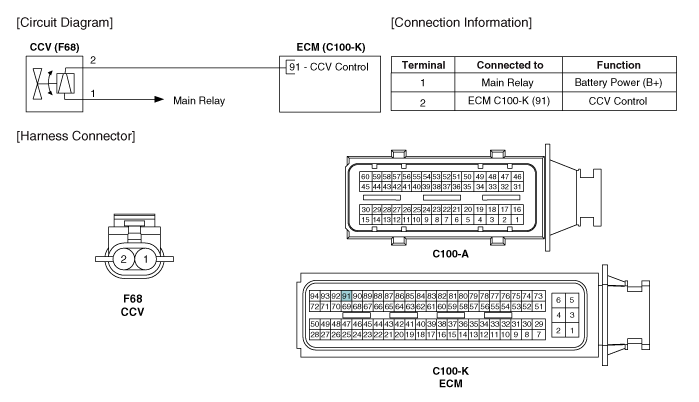

Circuit Diagram

Canister Close Valve (CCV) Specifications

Specification ItemSpecificationCoil Resistance (?)19.8 ~ 21.8 [20°C(68°F) ...

Canister Close Valve (CCV) Repair procedures

Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Lift the vehicle. 3. Disconnect the canister close valve connector (A). 4. Disconnect the ventilation hose (B) ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Specifications


Specification ItemsBulb TypeBulb Wattage (W)FrontHead lamp(STD)LowH7S55HighH7L55Head lamp(HID)LowD1S35HighH7L55Turn signal lampPY28/8W28Position lampPY28/8W or LED8 or LEDFog lampH8L or LED35 or LEDSide markerLEDLEDSide repeater lampLEDLEDRearRear combination lmapTurn signal lampP27W27Stop/ Tail lamp ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: NVLD(Natural Vacuum Leakage Detection) Repair procedures


Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Disconnect the NVLD connector (A). 3. Disconnect the ventilation hoses (B,C). 4. Remove the NVLD after by loosening the bolts (A). Installation • Install the component with the specified torques. • Note that ...
