Kia Optima Hybrid: Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

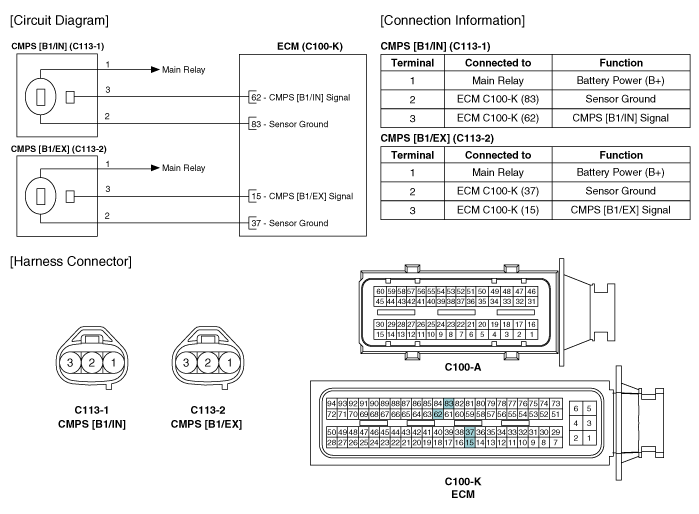

Circuit Diagram

Camshaft Position Sensor (CMPS) Troubleshooting

Wave Form ...

Camshaft Position Sensor (CMPS) Repair procedures

Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” Removal     • Do not remove the camshaft position sensor while engine is ...
