Kia Optima Hybrid: Lubrication System / Balance Shaft & Oil Pump Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Engine Mechanical System / Lubrication System / Balance Shaft & Oil Pump Components and Components Location

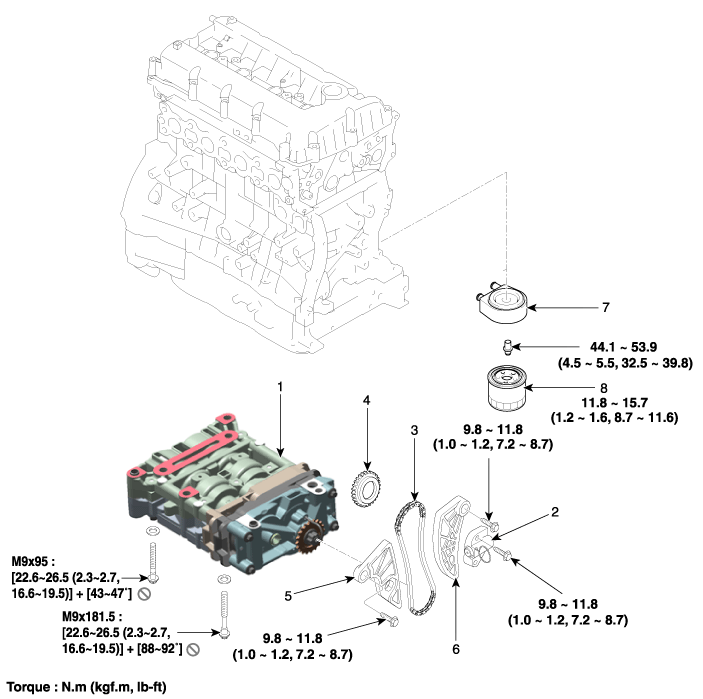

Components

1. Balance shaft & oil pump assembly
2. Balance shaft chain tensioner
3. Balance shaft chain
4. Balance shaft chain sprocket
5. Balance shaft chain guide
6. Balance shaft chain tensioner arm
7. Oil cooler
8. Oil filter
