Kia Optima Hybrid: Windshield Deicer / Windshield Deicer Switch Repair procedures

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Windshield Deicer / Windshield Deicer Switch Repair procedures

Inspection

1.	The windshield deicer switch inputs can be checked using the GDS.

2.	To check the input value of windshield deicer switch, select option "Body Control Module".

3.	Select option "Current Data of smart junction box".

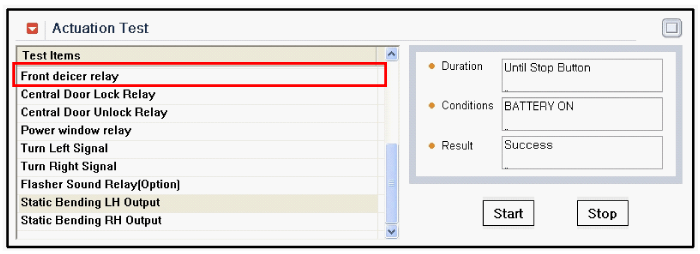

4.	To check the input value of windshield deicer switch in force mode, select option "Actuation Test of smart junction box".

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the heater and A/C control unit. (Refer to Heating, Ventilation, Air Condition - "Heater & A/C Control Untit (Manual)) (Refer to Heating, Ventilation, Air Condition - "Heater & A/C Control Untit (DATC))

Installation

1.	Install the heater and A/C control unit.

2.	Connect the negative (-) battery terminal.

Windshield Deicer Repair procedures

Inspection 1. Remove the cowl top cover. (Refer to the wiper) 2. Disconnect the windshield deicer connector (A) from the wiper motor linkage. 3. Check for continuity between the terminals of deicer lines. ...
