Kia Optima Hybrid: Air Conditioning System / Refrigerant line Components and Components Location

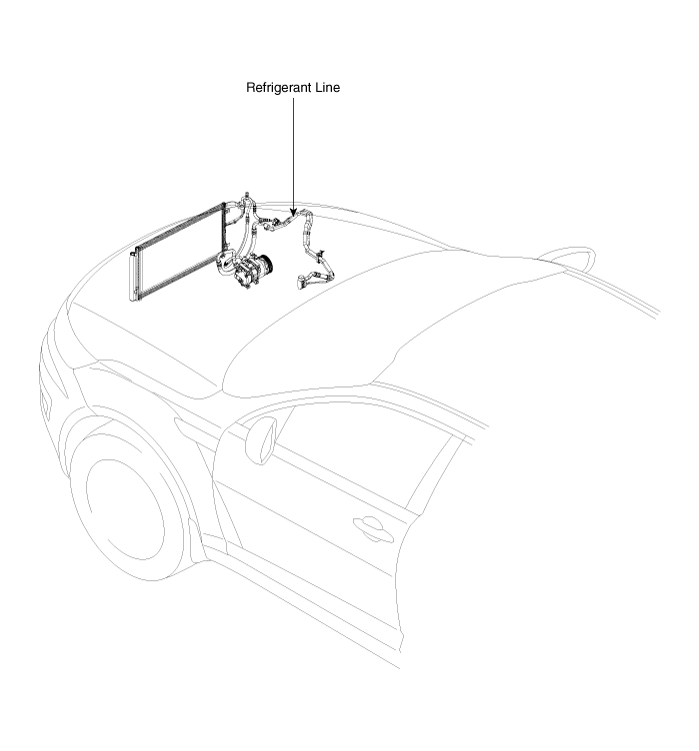

Component Location

Compressor Oil Repair procedures

Oil Specification 1. The HFC-134a system requires synthetic (POE) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2. Compressor (POE) oil varies ...

Refrigerant line Repair procedures

Replacement 1. Discharge refrigerant from refrigeration system. 2. Replace faulty tube or hose.     Cap the open fittings immediately to keep moisture or dirt out of the system. 3. Tighten joint ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Audio Remote Control Repair procedures


Inspection 1. Check the audio remote control switch (A) for resistance between connector terminals in each switch position. [LH-Audio] [LH-Mute] [Audio] SwitchConnector terminalResistance (±5%)Volume down2-76.81 k?Volume up2-74.61 k?Mode2-72.11 k?Seek up2-71.11 k?Seek down2-7430 ? [Bluetooth + Voice] ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Compass Mirror Repair procedures


Calibration Procedure If the compass has been calibrated or set to variance zone number incorrectly, or you are driving in specific places (tunnel, parking lot in building, underground parking lot, near transformer substation, etc.), the below conditions may occur. • The display read "C". • The compass ...
