Kia Optima Hybrid: Exterior / Rear Door Components and Components Location

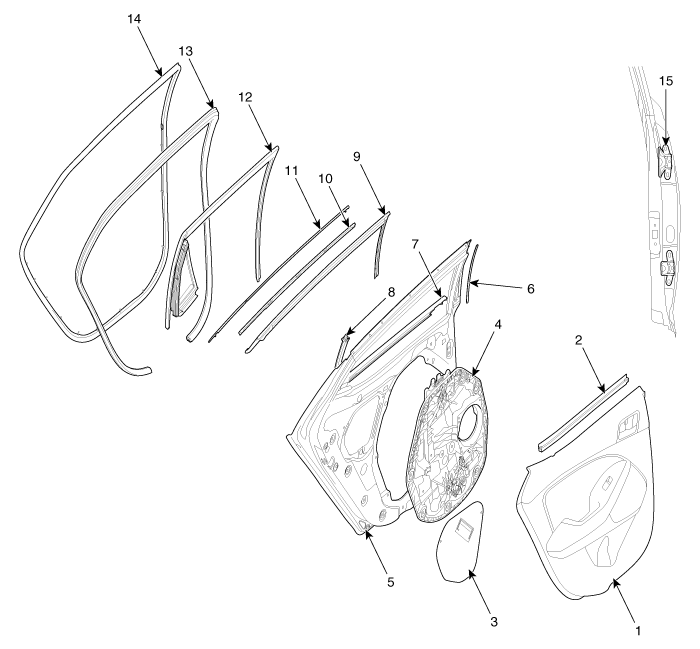

Components

1. Rear door trim
2. Rear door belt inside weatherstrip
3. Rear door trim seal
4. Rear door module
5. Rear door panel
6. Rear door side moulding
7. Rear door belt outer weatherstrip
8. Rear door DIV channel
9. Rear door upper opening weatherstrip
10. Rear door opening weatherstrip mounting moulding
11. Rear door frame moulding
12. Rear door window glass run & rear door fixed glass
13. Rear door body side weatherstrip
14. Rear door side weatherstrip
15. Rear door hinge

Front Door Repair procedures

Replacements Door Trim Replacement     • Be careful not to scratch the door trim and other parts. • Put on gloves to protect your hands. 1. Using a screwdriver or remover, remove the front ...

Rear Door Repair procedures

Replacement Door Trim Replacement     • Be careful not to scratch the door trim and other parts. • Put on gloves to protect your hands. 1. After loosening the mounting screws, then remove ...
