Kia Optima Hybrid: Engine Control System / Fuel Tank Pressure Sensor (FTPS) Schematic Diagrams

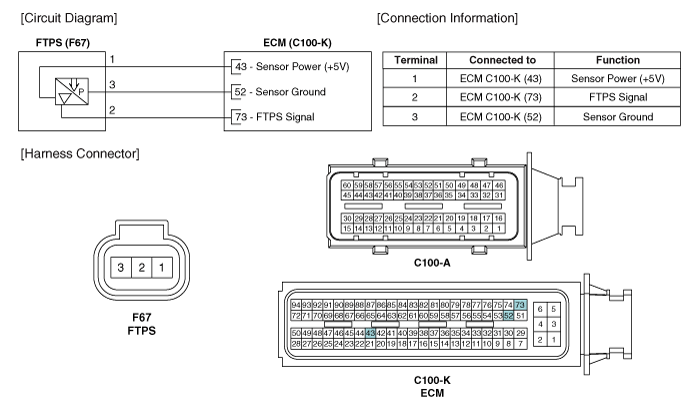

Circuit Diagram

Fuel Tank Pressure Sensor (FTPS) Specifications

Specification Pressure [kPa (kgf/cm?, in H2O)Output Voltage (V)-6.67 (-0.068, -26.8)0.502.5+6.67 (0.068, 26.8)4.5 ...

Fuel Tank Pressure Sensor (FTPS) Repair procedures

Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Pressure [kPa (kgf/cm?, in H2O)Output Voltage (V)-6.67 (-0.068, -26.8)0.502.5+6.67 (0.068, 26.8)4.5 ...
