Kia Optima Hybrid: Seat & Power Seat / Front Seat Components and Components Location

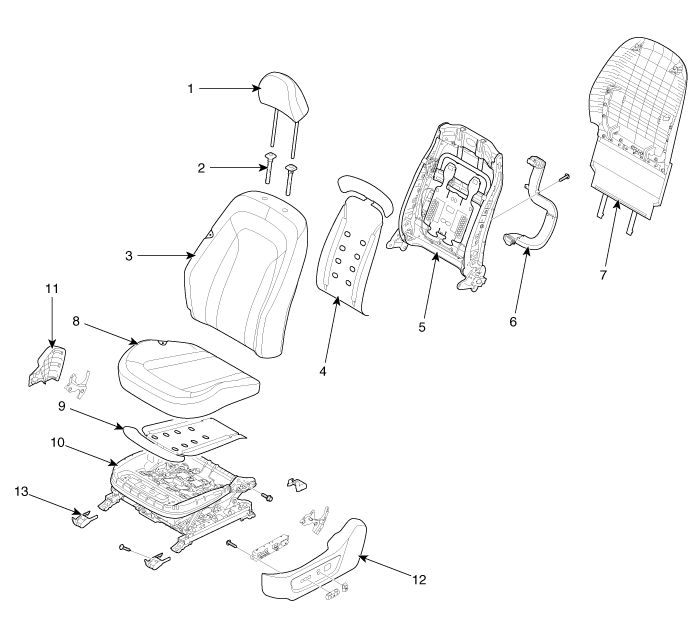

Components

1. Headrest
2. Headrest guide
3. Front seat back cover
4. Front seat back warmer
5. Front seat back frame
6. Front seat duct
7. Front seat back board
8. Front seat cushion cover
9. Front seat cushion warmer
10. Front seat cushion frame
11. Front shield inner cover
12. Front seat outer shield cover
13. Foot mounting cover

Seat & Power Seat

...

Front Seat Repair procedures

Replaccement Seat Assembly Replacement 1. Remove the seat track mounting cover. 2. After loosening the seat assembly mounting bolts, remove the seat assembly (A). Tightening torque : 49.0 ~ 63.7N.m (5.0 ...
