Kia Optima Hybrid: Front Axle Assembly / Front Hub / Knuckle Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle Components and Components Location

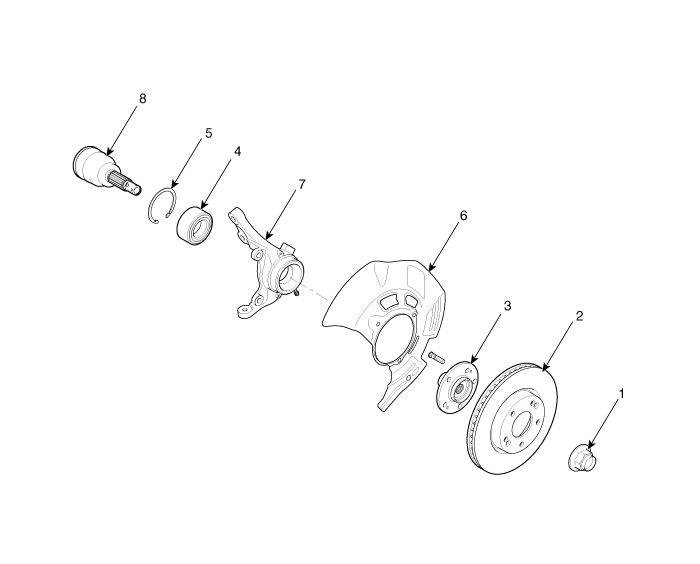

Components

1. Driveshaft nut
2. Brake disc
3. Hub
4. Wheel bearing
5. Snap ring
6. Dust cover
7. Knuckle
8. Driveshaft
