Kia Optima Hybrid: Exterior / Front Door Components and Components Location

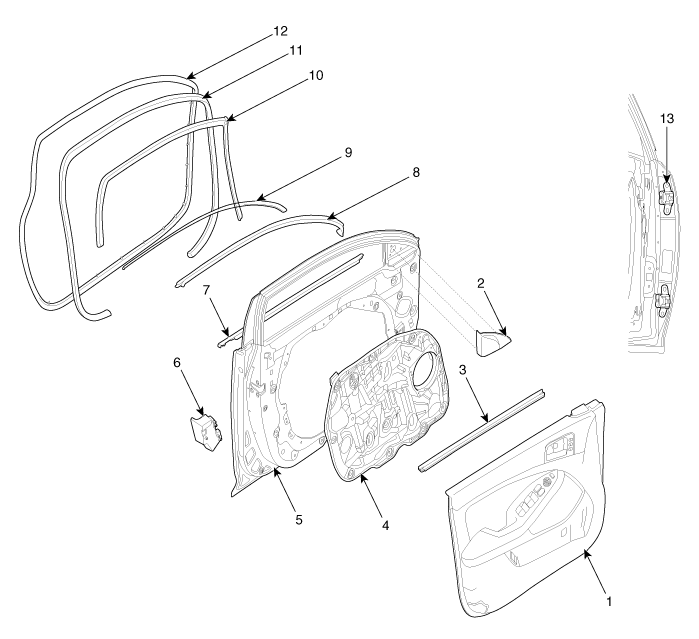

Components

1. Front door trim
2. Front door quadrant inner cover
3. Front door belt inside weatherstrip
4. Front door module
5. Front door panel
6. Front door side impact pad
7. Front door belt outer weatherstrip
8. Front door upper opening weatherstrip
9. Front door frame moulding
10. Front door window glass run assembly
11. Front door body side weatherstrip
12. Front door side weatherstrip
13. Front door hinge

Trunk Lid Repair procedures

Replacement Trunk Lid Assembly Replacement     • When removing and installing the trunk lid, an assistant is necessary. • Wear gloves to protect hands from injury. 1. Loosen the trunk inside ...

Front Door Repair procedures

Replacements Door Trim Replacement     • Be careful not to scratch the door trim and other parts. • Put on gloves to protect your hands. 1. Using a screwdriver or remover, remove the front ...
