Kia Optima Hybrid: Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic Diagrams

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Engine Control/Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic Diagrams

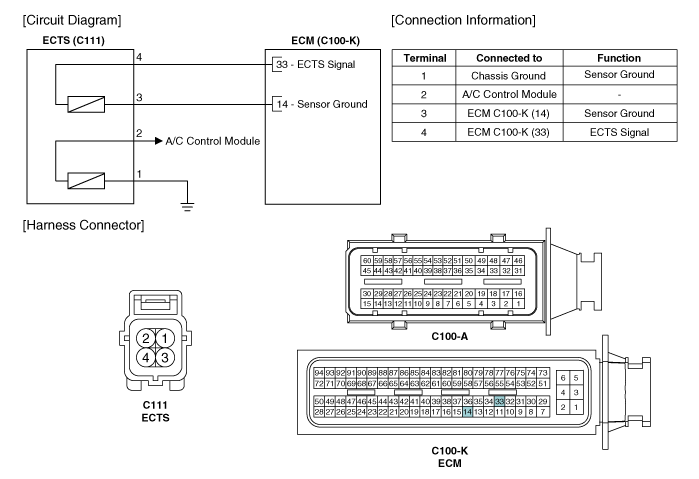

Circuit Diagram

Engine Coolant Temperature Sensor (ECTS) Specifications

Specification TemperatureResistance (k?)°C°F-40-4048.14-20-414.13 ~ 16.830325.7920682.31 ~ 2.59401041.15601400.59801760.32 ...

Engine Coolant Temperature Sensor (ECTS) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the ECTS connector. 3. Remove the ECTS. 4. After immersing the thermistor of the sensor into engine coolant, measure resistance between the ECTS ...
