Kia Optima Hybrid: ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor Components and Components Location

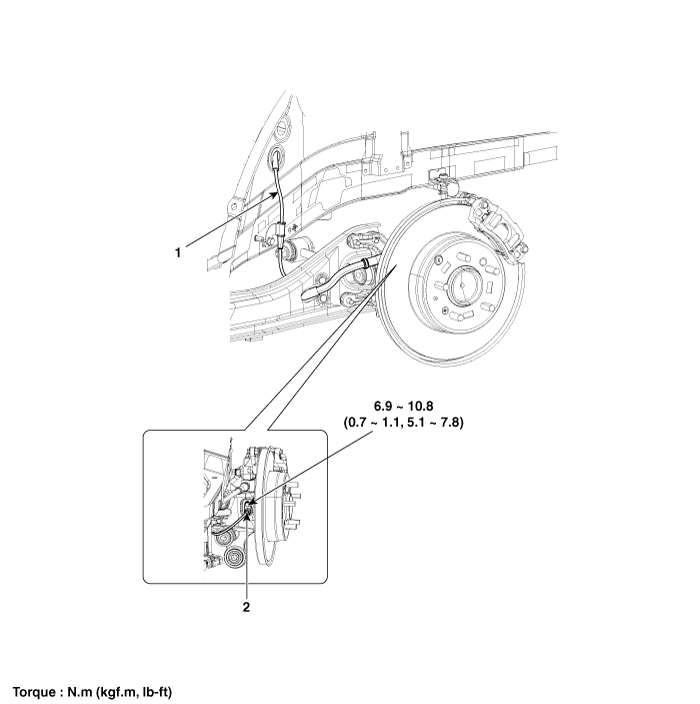

Components

1. Rear wheel speed sensor
2. Rear wheel speed sensor cable

Front Wheel Speed Sensor Repair procedures

Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the front wheel speed sensor mounting bolt (A). Tightening torque: 6.9 ~ ...

Rear Wheel Speed Sensor Repair procedures

Removal 1. Remove the rear wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the rear wheel speed sensor mounting bolt (A). Tightening torque: 6.9 ~ 10.8 ...
