Kia Optima Hybrid: Automatic Transaxle Control System / Engine Clutch Control Solenoid Valve (E/C_VFS) Schematic Diagrams

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Engine Clutch Control Solenoid Valve (E/C_VFS) Schematic Diagrams

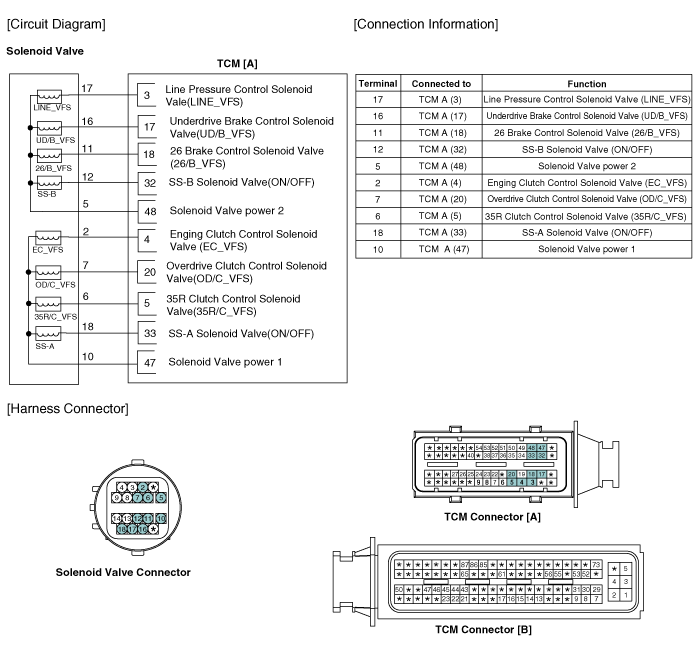

Circuit Diagram

Engine Clutch Control Solenoid Valve (E/C_VFS) Specifications

Specifications Direct control VFS [E/C] Control type : Normal low type Control Pressure kpa(kgf/cm?, psi)9.81 ~ 500.14(0.1 ~ 5.1, 1.42 ~ 72.54)Current value (mA)50~850 Internal resistance (?)5.1 ...

Engine Clutch Control Solenoid Valve (E/C_VFS) Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose ...
