Kia Optima Hybrid: Interior / Console Components and Components Location

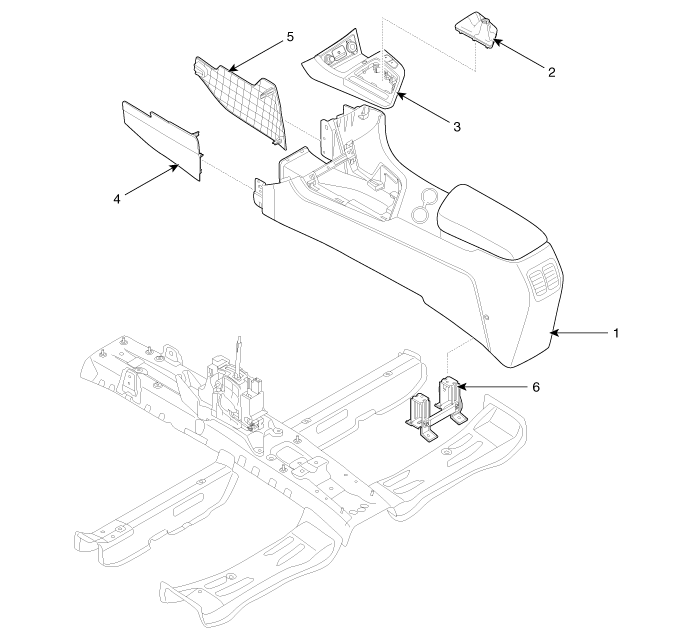

Components

1. Floor console assembly
2. Gear boots
3. Floor console upper cover
4. Floor console extension cover [LH]
5. Floor console extension cover [RH]
6. Console rear bracket

Interior

...

Console Repair procedures

Replacement Floor Console Replacement     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...
