Kia Optima Hybrid: Air Conditioning System / Condenser Components and Components Location

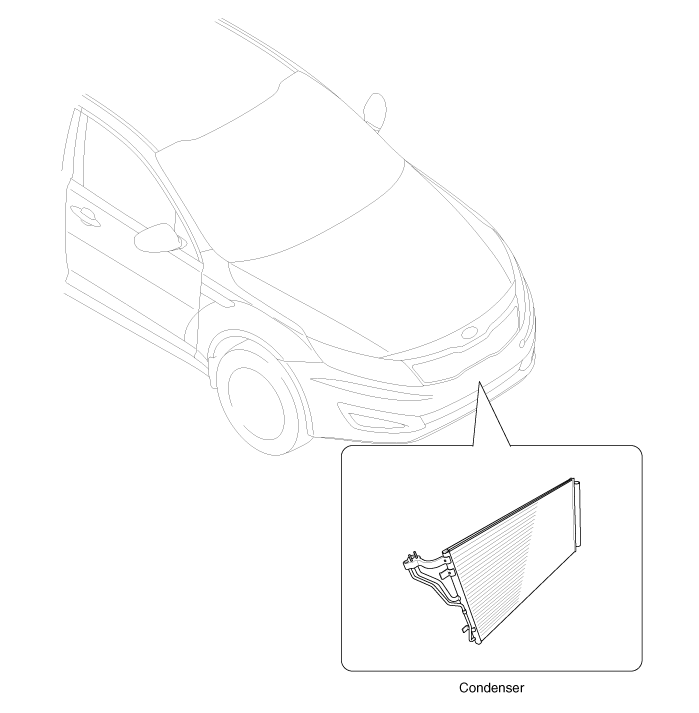

Component Location

Electric A/C compressor Repair procedures

Removal 1. If the compressor is marginally operable, run the engine, and let the air conditioning work for a few minutes, then shut the engine off. 2. Shut off the high voltage circuit.(Refer to Hybrid ...

Condenser Repair procedures

Inspection 1. Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers. 2. Check the ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Transaxle Control Module (TCM) Repair procedures


Inspection TCM Problem Inspection Procedure 1. TEST TCM GROUND CIRCUIT: Measure resistance between TCM and chassis ground using the backside of TCM harness connector as TCM side check point. If the problem is found, repair it. Specification: Below 1? 2. Test TCM Connector: Disconnect the TCM connector ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Blind Spot Detection Switch Repair procedures


Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to the BD group - "Crash pad") 3. Remove the crash pad side switch assembly (A) as shown below picture.     Wear globes to protect hands from injury. 4. Remove the crash pad lower switch assembly ...
