Kia Optima Hybrid: Audio / Components and Components Location

Component Location

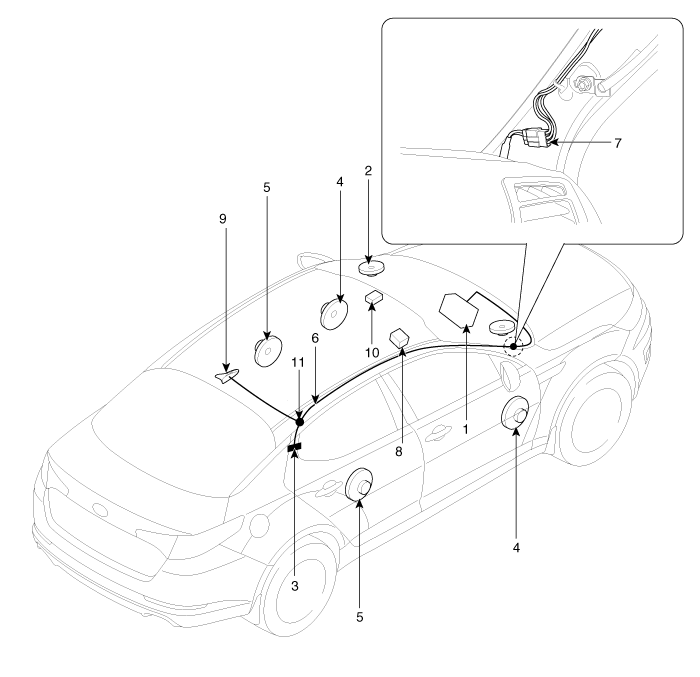

1. Audio unit
2. Midrange speaker
3. Glass antenna (AM/FM)
4. Front door speaker
5. Rear door speaker
6. Antenna feeder cable
7. Feeder cable joint connector
8. Multimedia jack
9. Roof antenna (SDARS)
10. Hands free mic (Built in OHC)
11. Extention & Feeder cable joint connector

Specifications

Specification Audio ItemSpecificationModelRADIO/CD/MP3/SDARS (PA30AS)UVO2/ Bristiol audioInternal AmplifierPower supplyDC 14.4 V Negative groundOutput max power43W ? 4 : 14.4VLoad impedance (?)4 ? x 44 ...

Audio Unit Components and Components Location

Components Connector Pin Information Pin No.Connector A (18pin)Connector B (24pin)1Rear left speaker (+)-2Front left speaker (+)-3Front right speaker (+)-4Rear right speaker (+)Steering remocon5--6-USB ...
