Kia Optima Hybrid: Restraint / Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Restraint / Components and Components Location

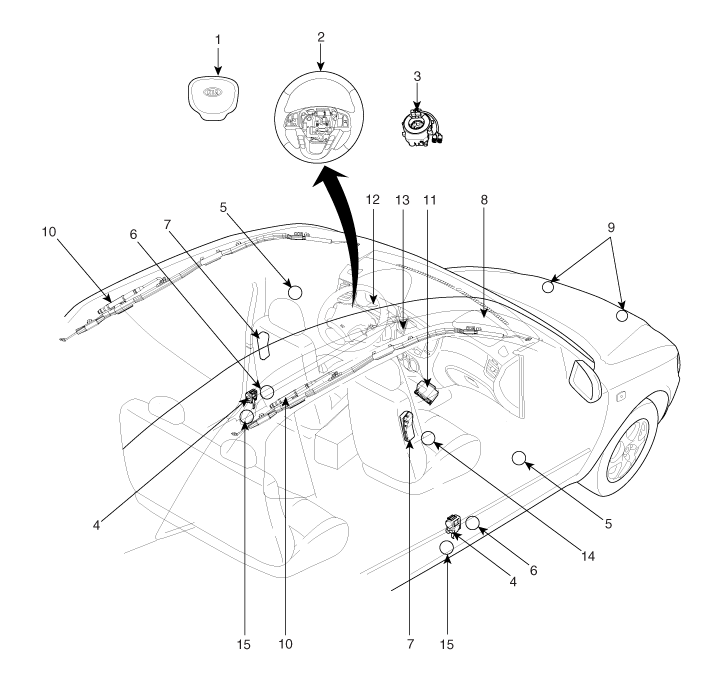

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Pressure Side Impact Sensor (P-SIS)
6. Side Impact Sensor (SIS)
7. Side Airbag (SAB)
8. Passenger Airbag (PAB)
9. Front Impact Sensor (FIS)
10. Curtain Airbag (CAB)
11. Supplemental Restraint System Control Module(SRSCM)
12. Airbag Warning Lamp
13. Telltale Lamp
14. Weight Classification System (WCS) Module
15. Anchor Pretensioner (APT)

Components Location

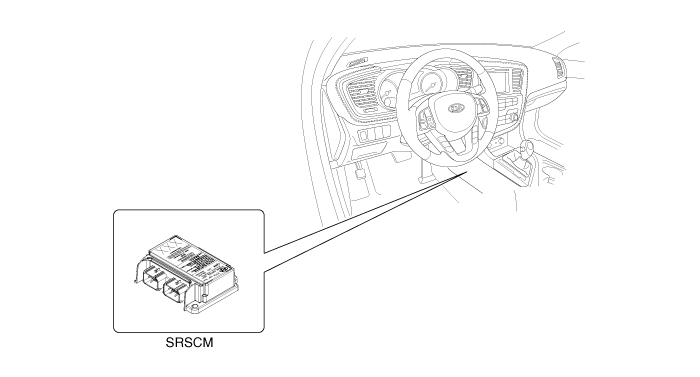

Supplemental Restraint System Control Module (SRSCM)

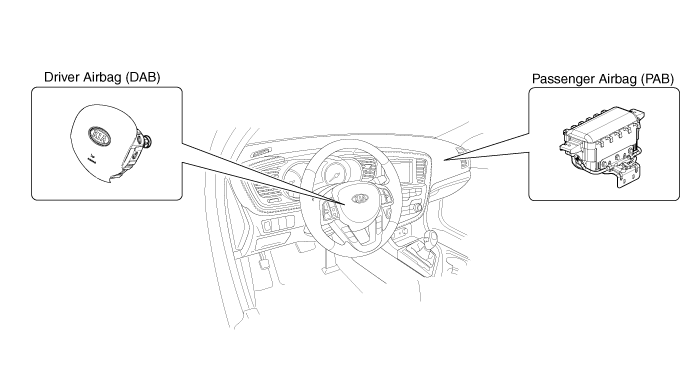

Driver Airbag (DAB) / Passenger Airbag (PAB)

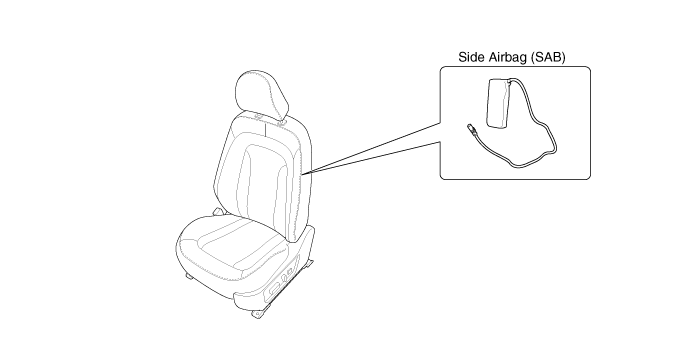

Side Airbag (SAB)

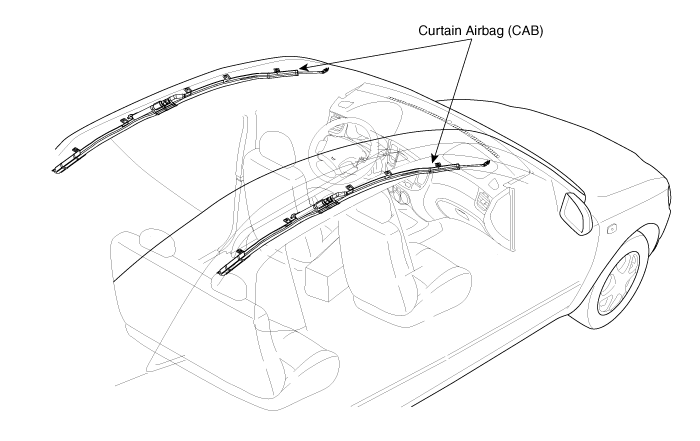

Curtain Airbag (CAB)

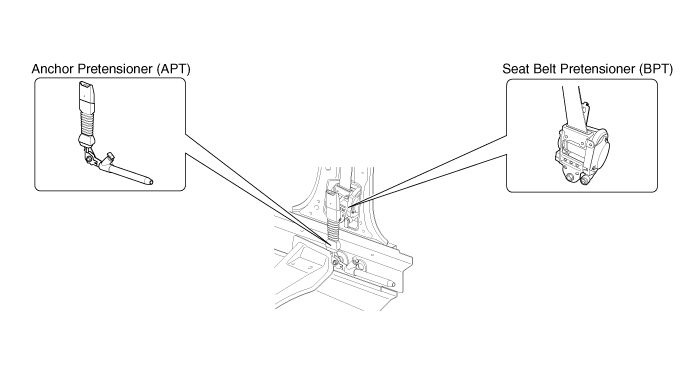

Seat Belt Pretensioner (BPT) / Anchor Pretensioner (APT)

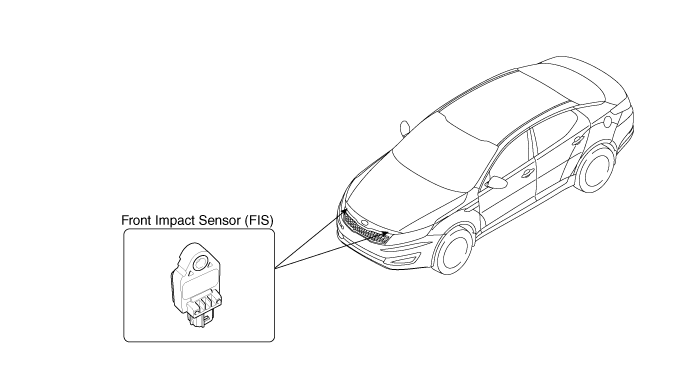

Front Impact Sensor (FIS)

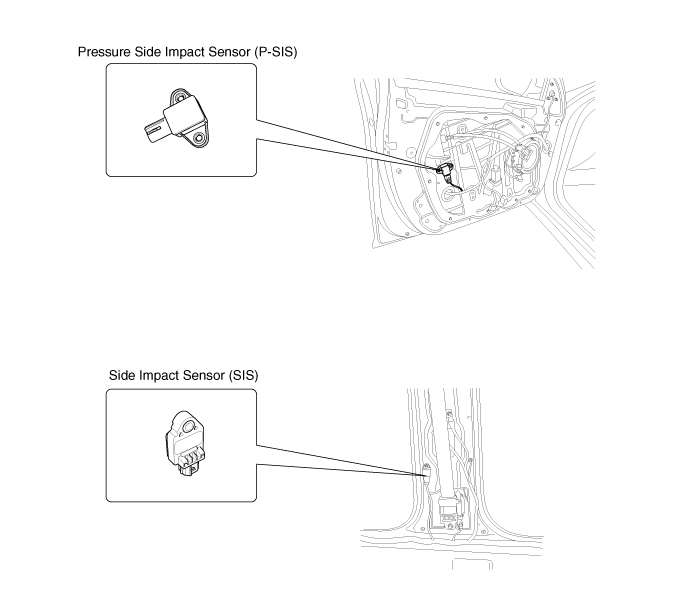

Side Impact Sensor (SIS)

Troubleshooting

Warning Lamp Activation Warning Lamp Behavior after Ignition On As soon as the operating voltage is applied to the SRSCM ignition input, the SRSCM activates the warning lamp for a LED lamp check. The lamp ...
