Kia Optima Hybrid: Tire Pressure Monitoring System / Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Suspension System / Tire Pressure Monitoring System / Components and Components Location

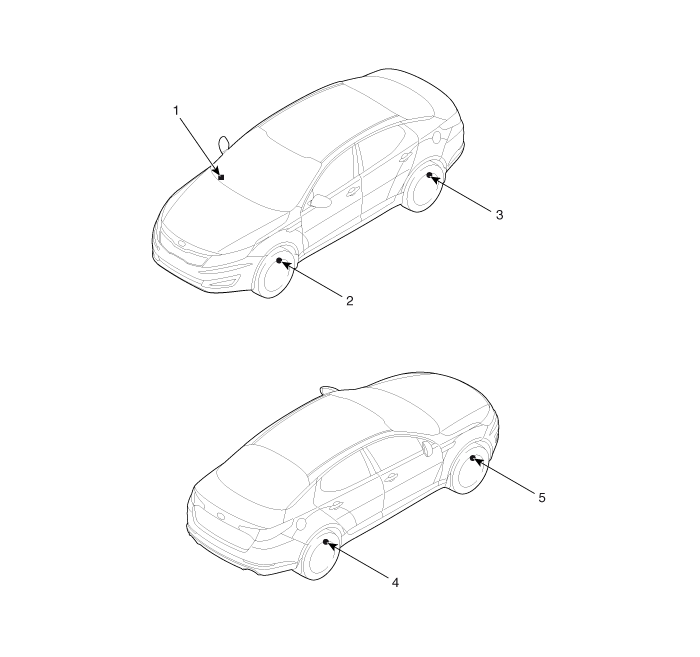

Components Location

1. Receiver
2. TPMS sensor (FL)
3. TPMS sensor (RL)

4. TPMS sensor (RR)
5. TPMS sensor (FR)
